Description

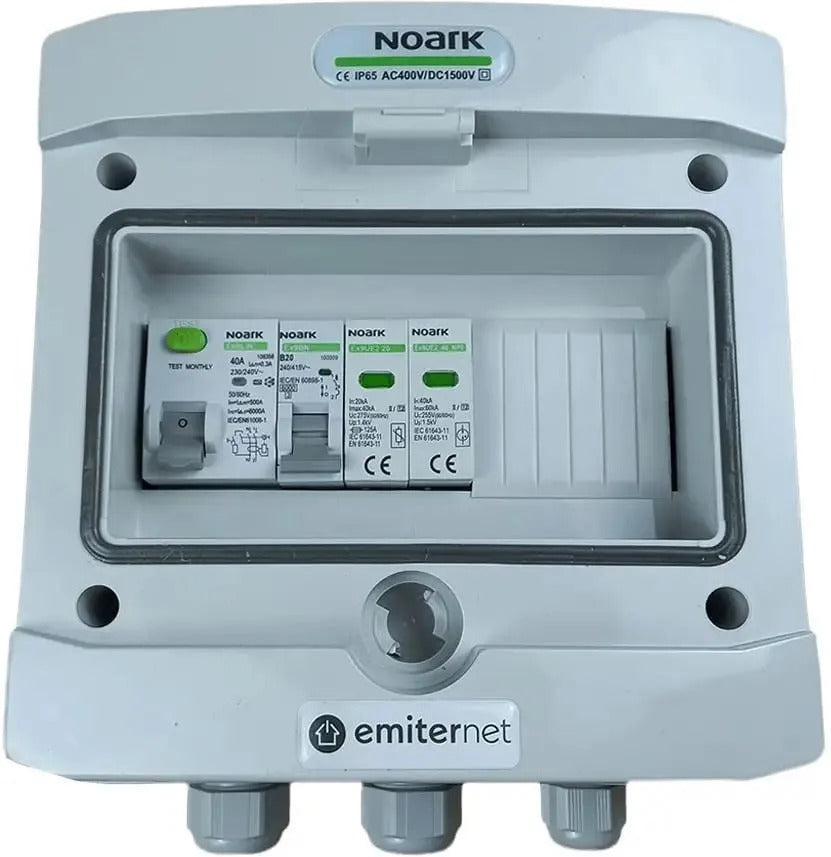

The EMITER EM-937N_DCAC is a hermetic switchgear designed for high-performance applications, featuring an IP65 rating for protection against elements. It integrates a Noark type 2 DC surge arrester with a maximum voltage of 1000V and supports two PV strings and two MPPT units. This model is rated for 20A and also includes an RCD rated at 40A/300mA. It measures 400 mm in length, 202 mm in width, and 201 mm in height, with a weight of 2840 g.
Key Features
- Hermetic IP65 housing
- Noark type 2 DC surge arrester
- 1000V maximum voltage
- 2 x PV string support
- 2 x MPPT support
- Power rating: 20A
- Includes RCD 40A/300mA
- Weight: 2840 g
- Dimensions: 400 mm x 202 mm x 201 mm
Specifications
Brand: EMITER
Model Number: EM-937N_DCAC
Product Type: Switchgear
Weight (g): 2840
Width (mm): 202
Height (mm): 201
Length (mm): 400
€311,74
