Description

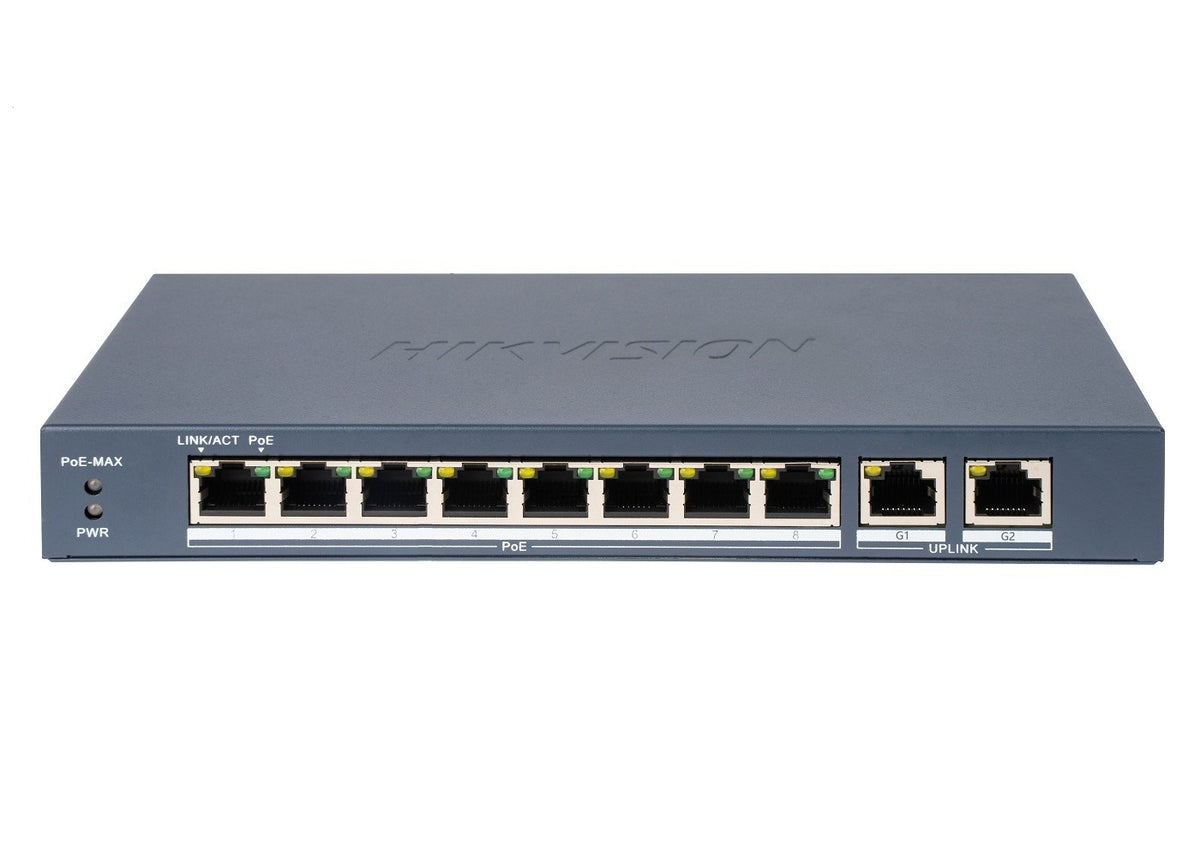

The Hikvision DS-3E0310P-E/M(B) switch is a high-performance network device designed for efficient communication in security systems. It features a robust metal housing and supports Power over Ethernet (PoE) with 8 ports operating at 10/100Mbps, equipped with a total budget of 80 W for powering connected devices. The switch has a switching capacity of 2 Gbit/s and a packet forwarding rate of 41.66 million packets per second. Its compact dimensions of 255 mm in length, 85 mm in width, and 140 mm in height make it suitable for wall or tabletop mounting. The device operates on a DC input voltage of 54 V and consumes a maximum of 86 W, while remaining efficient with only 5 W power consumption at idle. It also includes features such as auto MDI/MDI-X support and a MAC address table capable of holding 8000 entries, making it ideal for dynamic networking environments.
Key Features
- 8 PoE ports supporting 10/100Mbps
- Switching capacity of 2 Gbit/s
- Packet forwarding rate of 41.66 million packets per second
- Input current: 1.6 A
- DC input voltage: 54 V
- Weight: 1133 g
- Operating temperature: 0 - 40 °C
- Storage temperature: -40 - 85 °C
- Auto MDI/MDI-X support
- Total Power over Ethernet (PoE) budget: 80 W
Specifications
Brand: Hikvision
Model Number: DS-3E0310P-E/M(B)
Product Type: Switch
Weight (g): 1133
Width (mm): 85
Length (mm): 255
Height (mm): 140
Power Source: DC
Input Current: 1.6
Power Consumption Max: 86
Power Consumption Idle: 5
Operating Relative Humidity: 5 - 95%
Storage Relative Humidity: 5 - 95%
Protection Features: Auto MDI/MDI-X
Sustainability Certificates: WEEE, REACH
€79,62
