Description

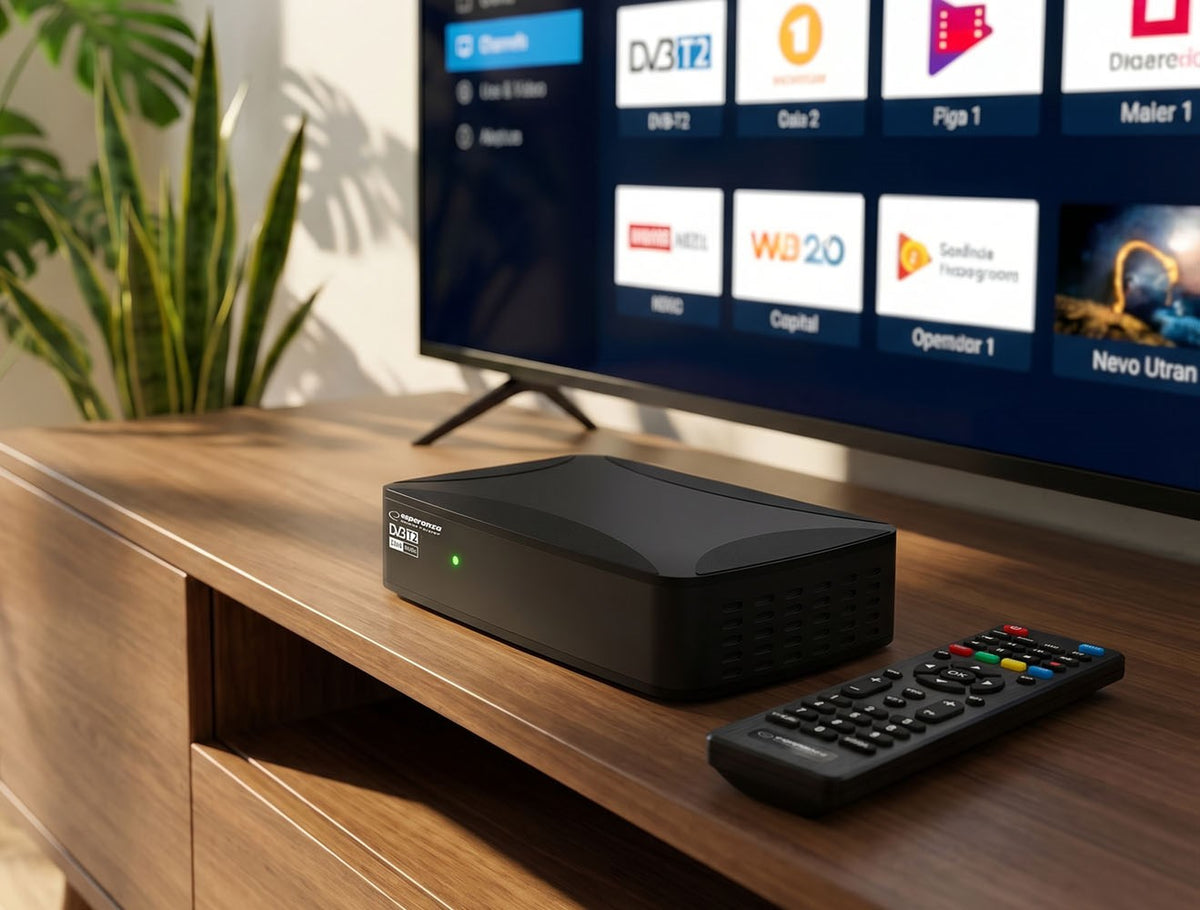

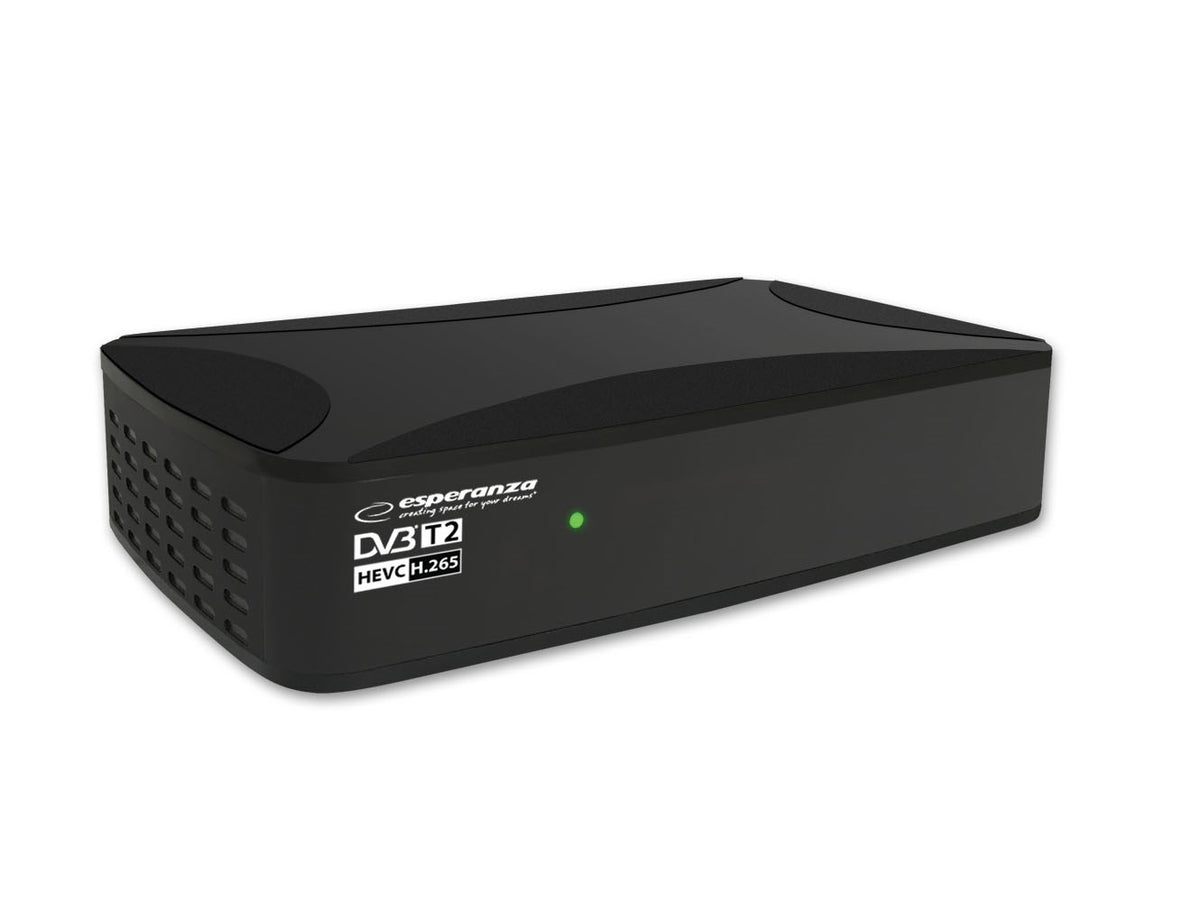

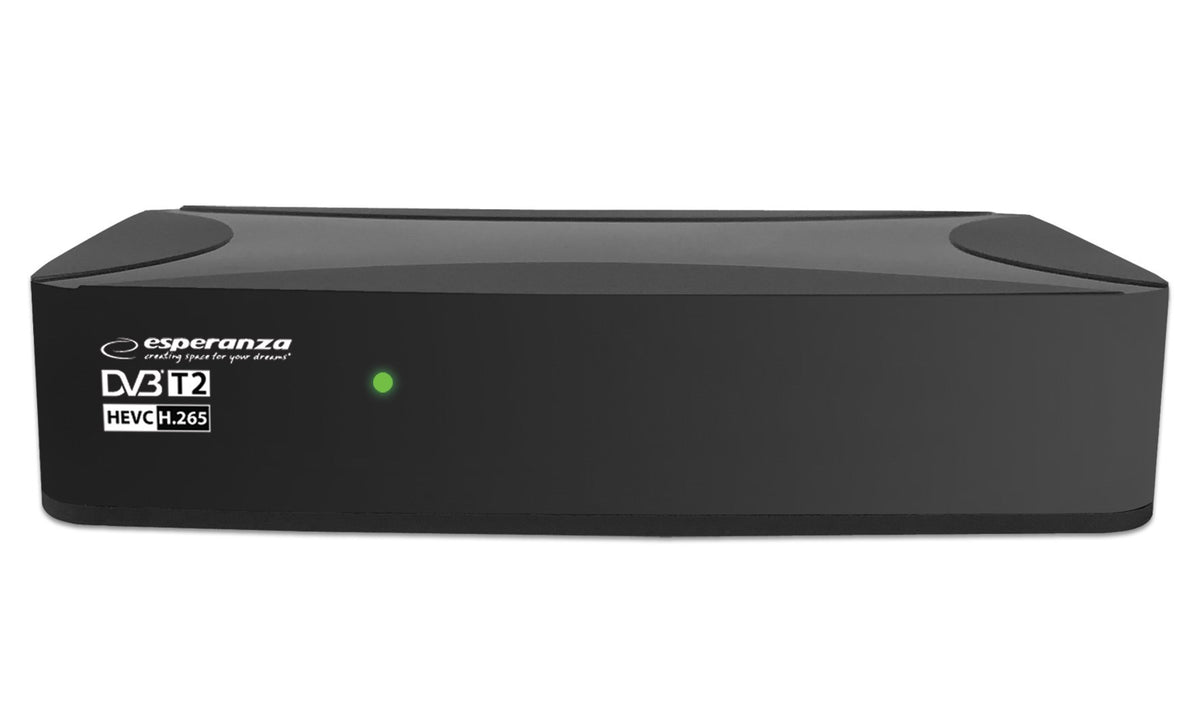

The Esperanza EV108R is a versatile TV set-top box designed for cable use, featuring a sleek black finish. It supports both analog and digital tuners with a frequency range of 174 to 230 MHz and 470 to 790 MHz, accommodating various signal formats including DVB-T2. The device includes essential audio decoders such as Dolby Digital Plus and features demodulation capabilities for 256-QAM, QPSK, 16-QAM, and 64-QAM. The unit is equipped with a timeshift function for convenient viewing and offers video formats support which includes H.264, MPEG4, HEVC/H.265, AVC, and MPEG2. It has a resolution capability for 1080p, 576i, 576p, 1080i, and 720p playback. The box incorporates an HDMI port, a SCART port, and a digital audio coaxial output, enabling connectivity with various devices. The device's power consumption in standby mode is 0.5 W and 6 W during typical usage. It weighs 290 grams and measures 190 mm in width, 105 mm in height, and 60 mm in depth.
Key Features
- DVB-T2 digital signal format system
- Supports video resolutions up to 1080p
- Audio decoders: Dolby Digital Plus
- Demodulation: 256-QAM, QPSK, 16-QAM, 64-QAM
- Timeshift functionality

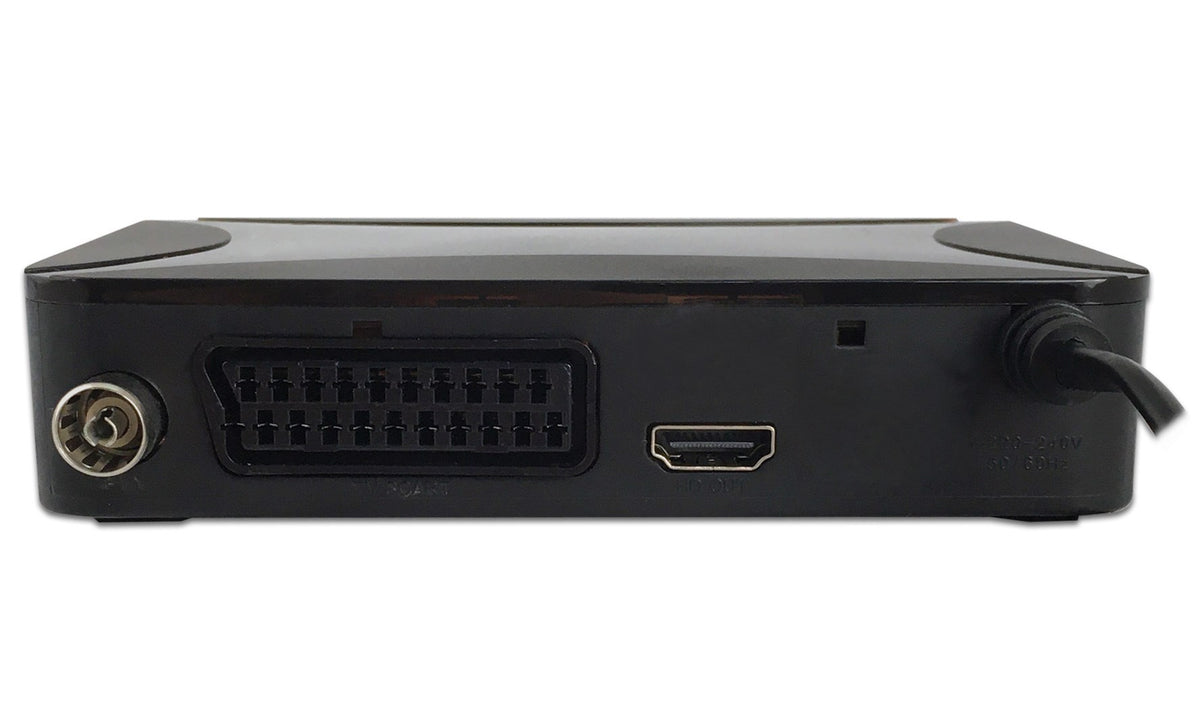

- 1 HDMI port
- 1 SCART port
- 1 digital audio coaxial output
- Power consumption: 0.5 W (standby), 6 W (typical)
- Weight: 290 g
- Dimensions: 190 mm width, 105 mm height, 60 mm depth
- Product color: Black

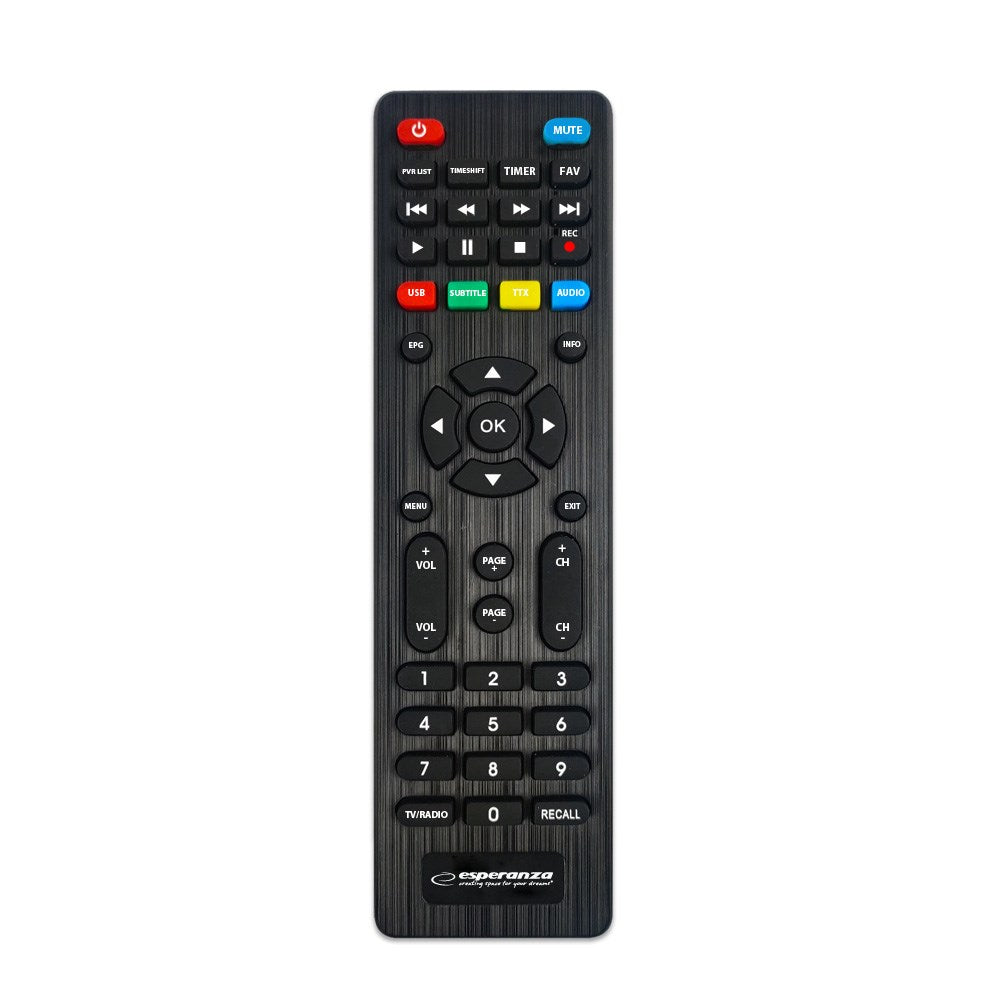

- Remote control included
- Cables included: AC
Specifications
Brand: Esperanza
Model Number: EV108R
Product Type: TV set-top box
Input Impedance: 75 Ω
Frequency Range: 174 - 230 / 470 - 790 MHz
Bandwidth: 8 MHz
Battery Included: false
Charger Included: false
€43,59
