Description

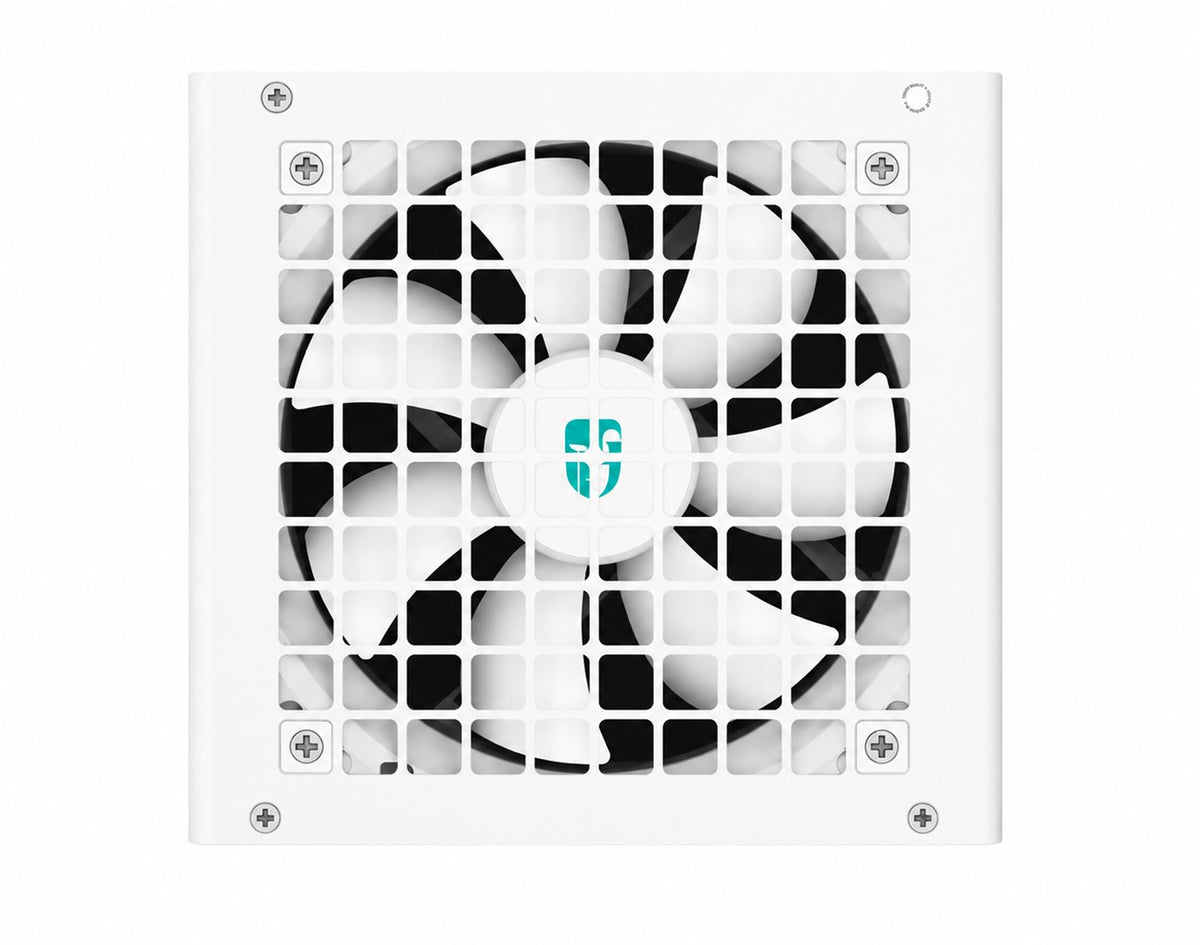

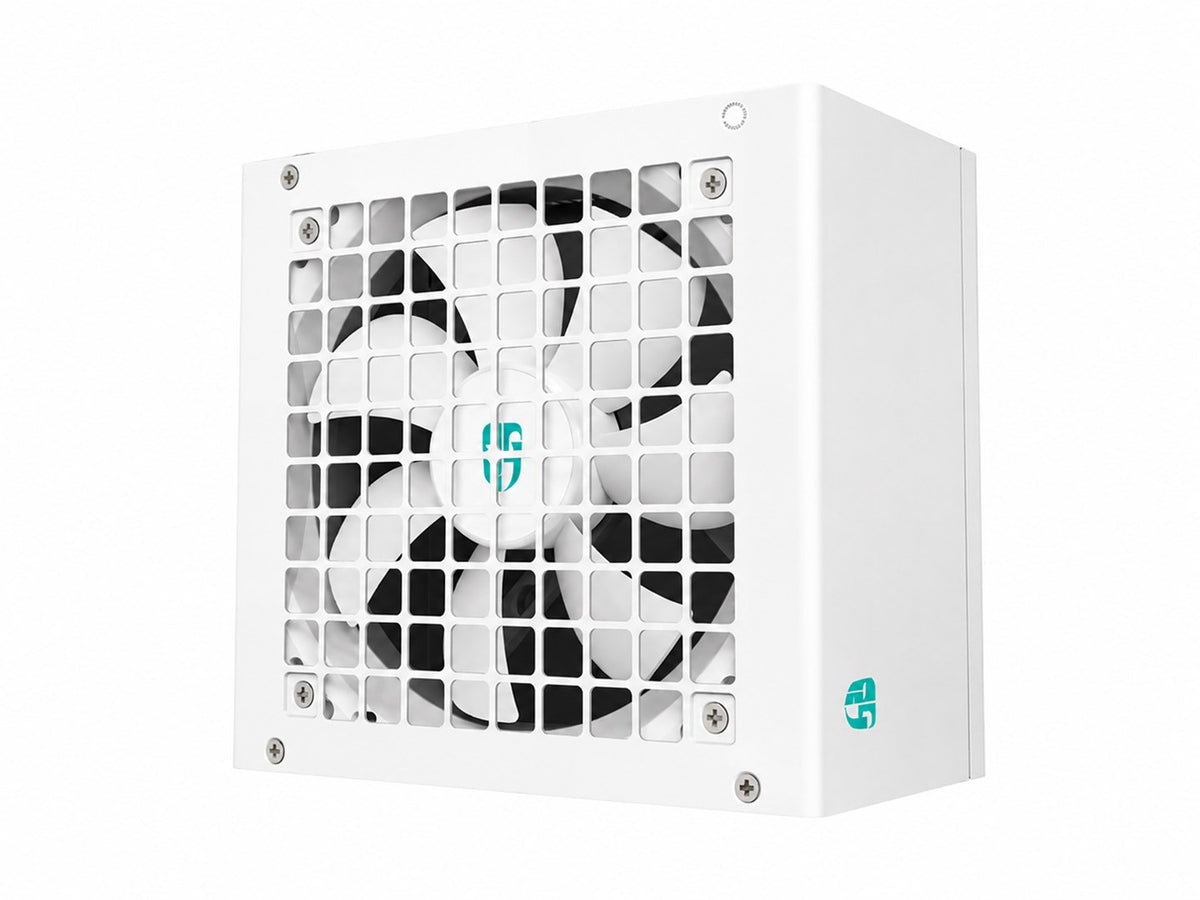

The DEEPCOOL PF750X WH is a powerful ATX power supply unit featuring a total power output of 750 W with a maximum combined power of 750 W on the +12V rail. This model is finished in a clean white color and measures 125 mm in width, 255 mm in length, and 200 mm in height, with a weight of 1960 g. It is equipped with a single 12 cm active cooling fan located at the bottom, providing effective thermal management. Key protective features include short circuit protection (SCP), overload protection (OPP), surge and shock protection (SIP), undervoltage protection (UVP), overvoltage protection (OVP), and overcurrent protection (OCP). The unit operates on an input voltage range of 100 to 240 V and boasts an efficiency rating of 88% along with active Power Factor Correction (PFC). An array of connectors is supported, including a 20+4 pin ATX motherboard power connector and 6 SATA power connectors.
Key Features
- 750 W total power
- Combined power (+12V): 750 W
- Active PFC
- 88% efficiency
- 1 x 12 cm fan
- Active cooling type
- Short circuit protection
- Overload protection
- Surge and shock protection
- Undervoltage protection
- Overvoltage protection
- Overcurrent protection
Specifications
Brand: DEEPCOOL
Model Number: R-PF750X-HD0B-JGEU
Product Type: Power supply unit
Color: White
Weight (g): 1960
Width (mm): 125
Length (mm): 255
Height (mm): 200
Power (W): 750
Voltage (V): 12
Battery Capacity (Ah): 62.5
Input Current: 10
Input Voltage: 100 - 240V
Ac Input Frequency: 50/60 Hz
Motherboard Power Connector: 20+4 pin ATX
Sata Power Connectors: 6
Power Protection Features: SCP, OPP, SIP, UVP, OVP, OCP
