Description

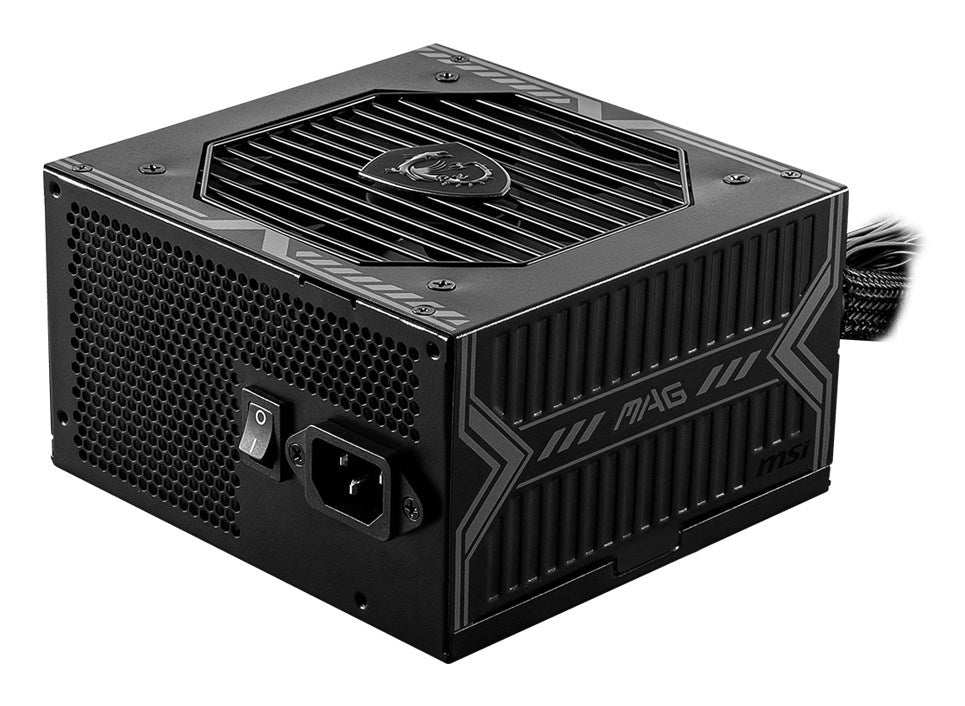

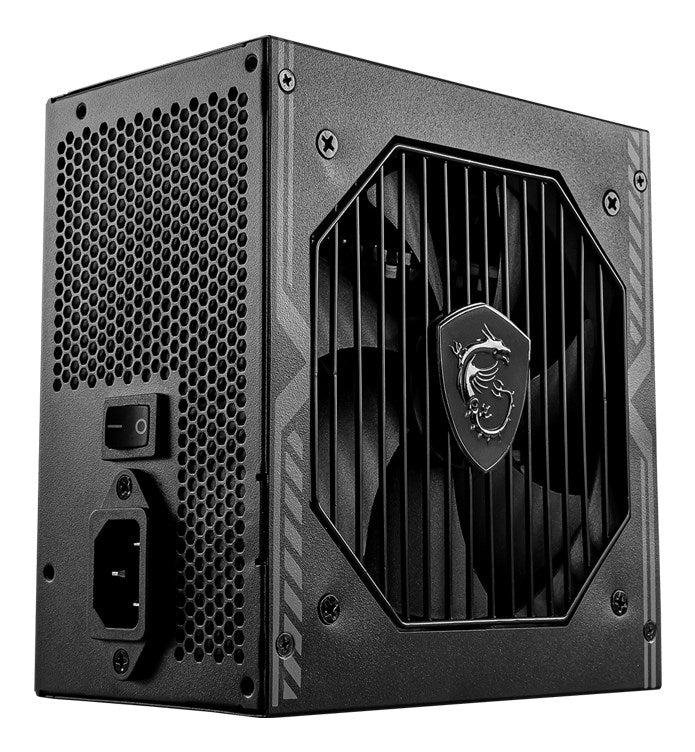

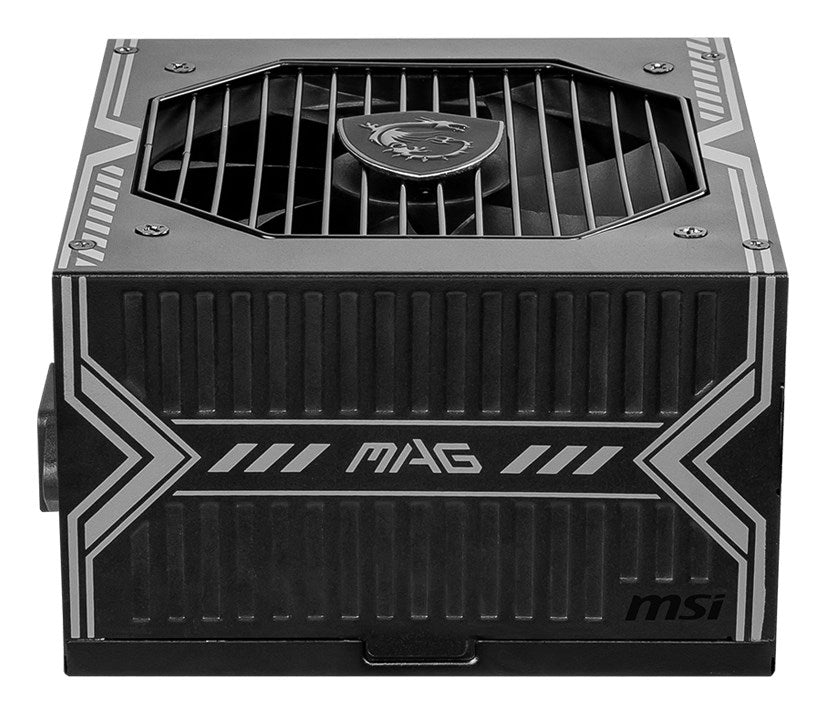

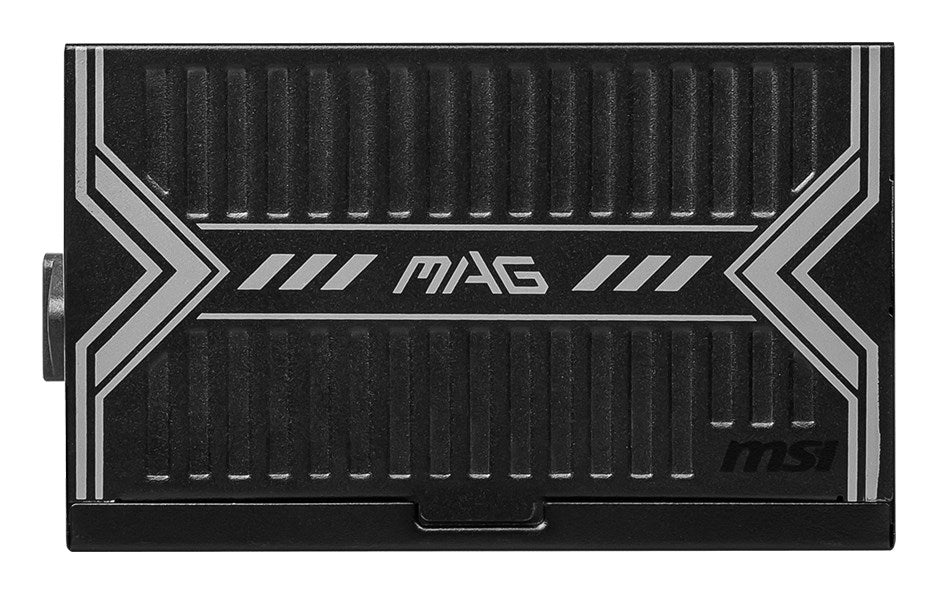

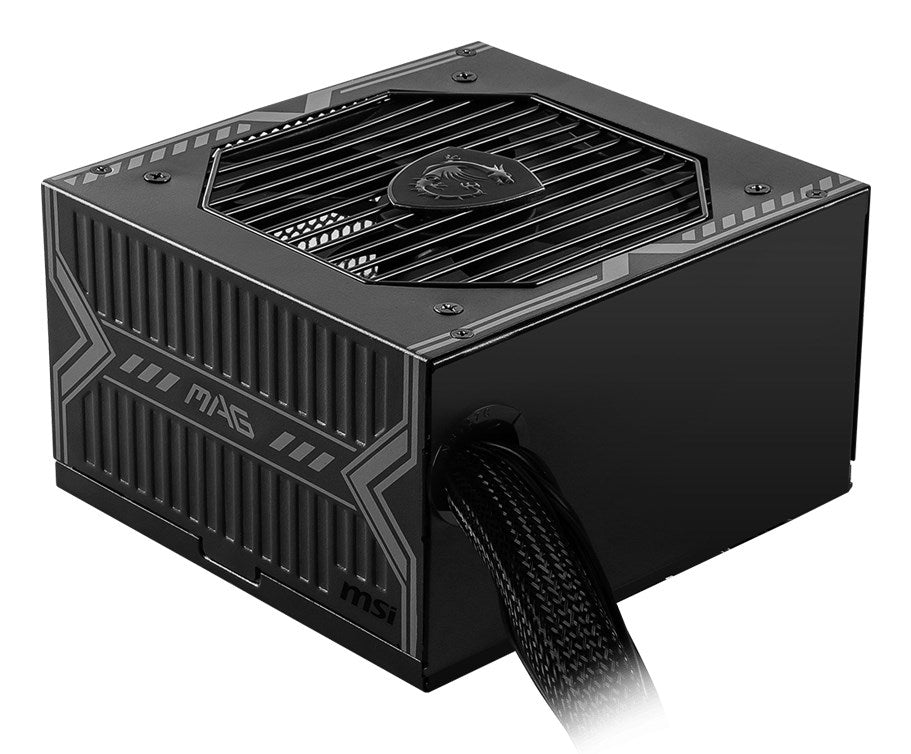

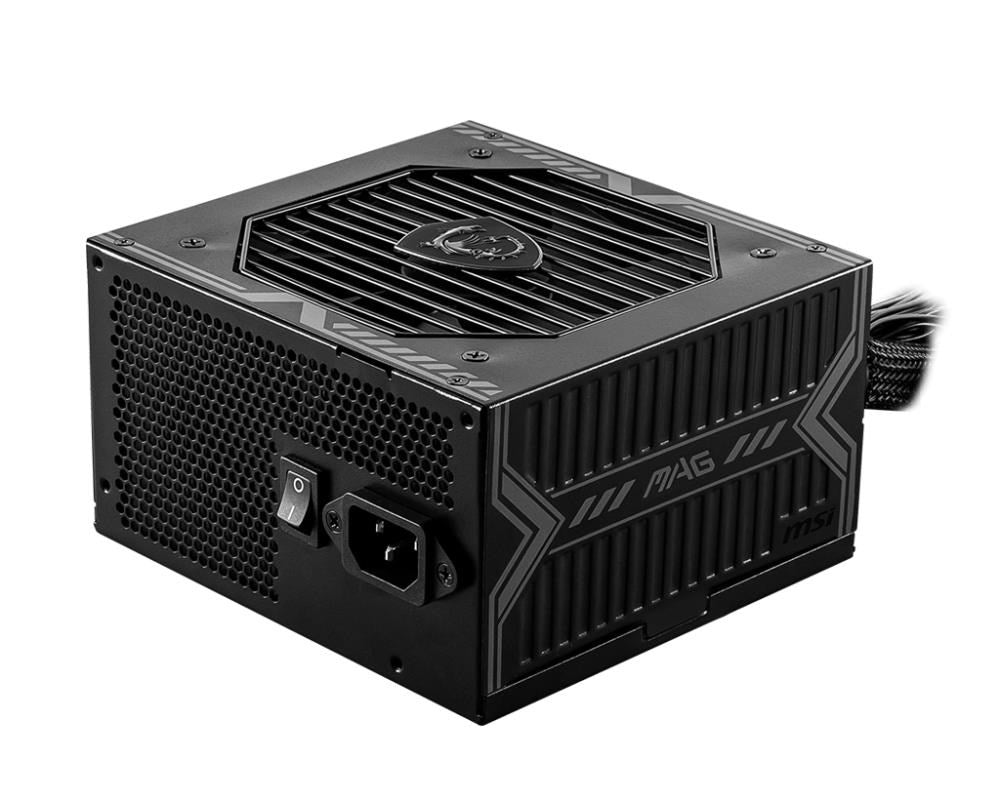

The MSI 306-7ZP2A11-CE0 is a reliable 550W ATX power supply designed for PC use. It features a total power output of 550W with an 85% efficiency rating, ensuring effective performance. The power supply is equipped with one 12 cm fan for active cooling and includes various protection features such as short circuit, over voltage, over power, overheating, and over current. It operates on an AC input voltage range of 100 to 240 V and supports a frequency of 50 to 60 Hz. The maximum output currents are 45.5 A for +12V, 20 A for +5V, and 20 A for +3.3V. Additionally, it provides multiple power connector options including two PCI Express connectors (6+2 pin) and five SATA power connectors.
Key Features
- 550W total power
- 85% efficiency
- Active cooling with 1 fan
- Short circuit, over voltage, and overheating protection
- AC input voltage: 100 - 240 V
- PCI Express power connectors: 2 (6+2 pin)
- Number of SATA power connectors: 5
Specifications
Brand: MSI
Model Number: 306-7ZP2A11-CE0
Product Type: Power supply unit
Weight (g): 2060
Width (mm): 245
Height (mm): 190
Length (mm): 120
Power (W): 550
Battery Count: 0
Power Source: AC
Fan Diameter: 120
Cooling Type: Active
Cabling Type: Non-Modular
Motherboard Power Connector: 20+4 pin ATX
Eps Power Connector: 4+4 pin
Max Output Current Plus12V: 45.5
Max Output Current Plus5V: 20
Max Output Current Plus3 3V: 20
Max Output Current Plus5Vsb: 2.5
Combined Power Plus12V: 546
Combined Power Plus5V: 110
Combined Power Plus3 3V: 110
Combined Power Negative12V: 3.6
Max Output Current Negative12V: 0.3
Max Input Current At 110V: 8
Max Input Current At 220V: 4
Power Factor Correction Type: Active
HS Code: 84733020
