Description

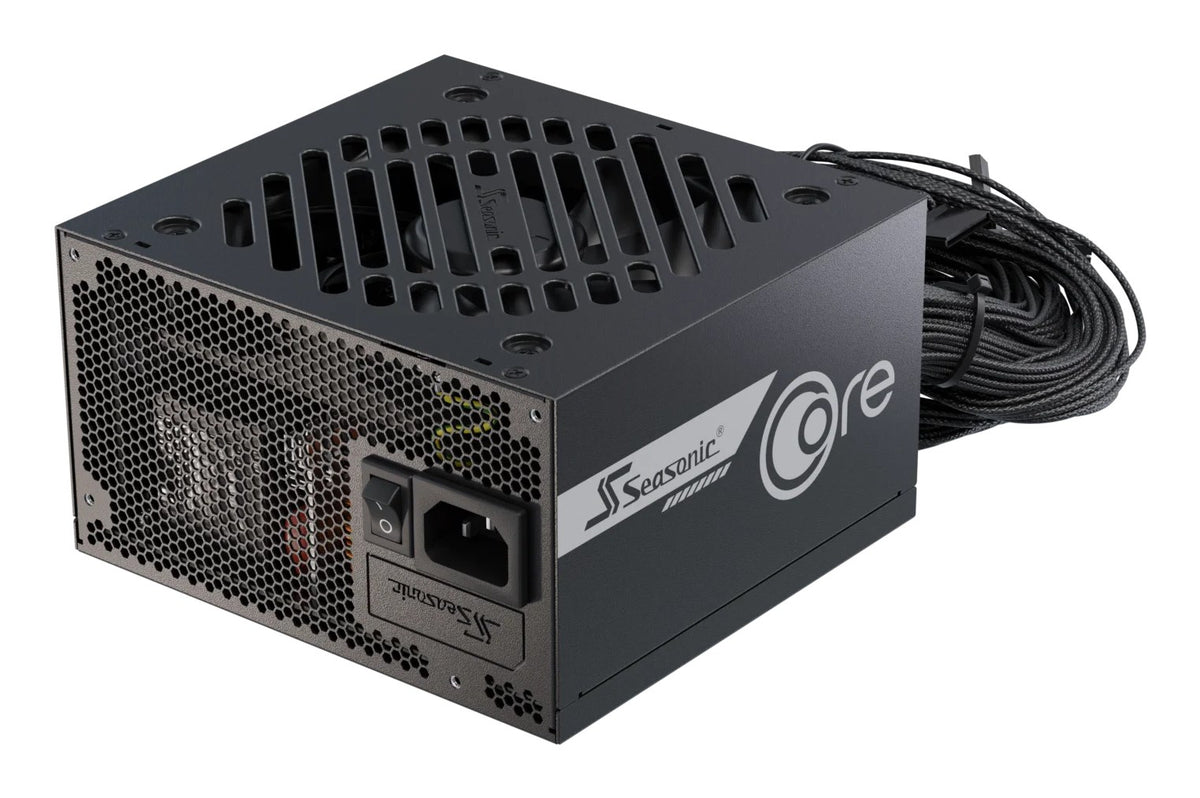

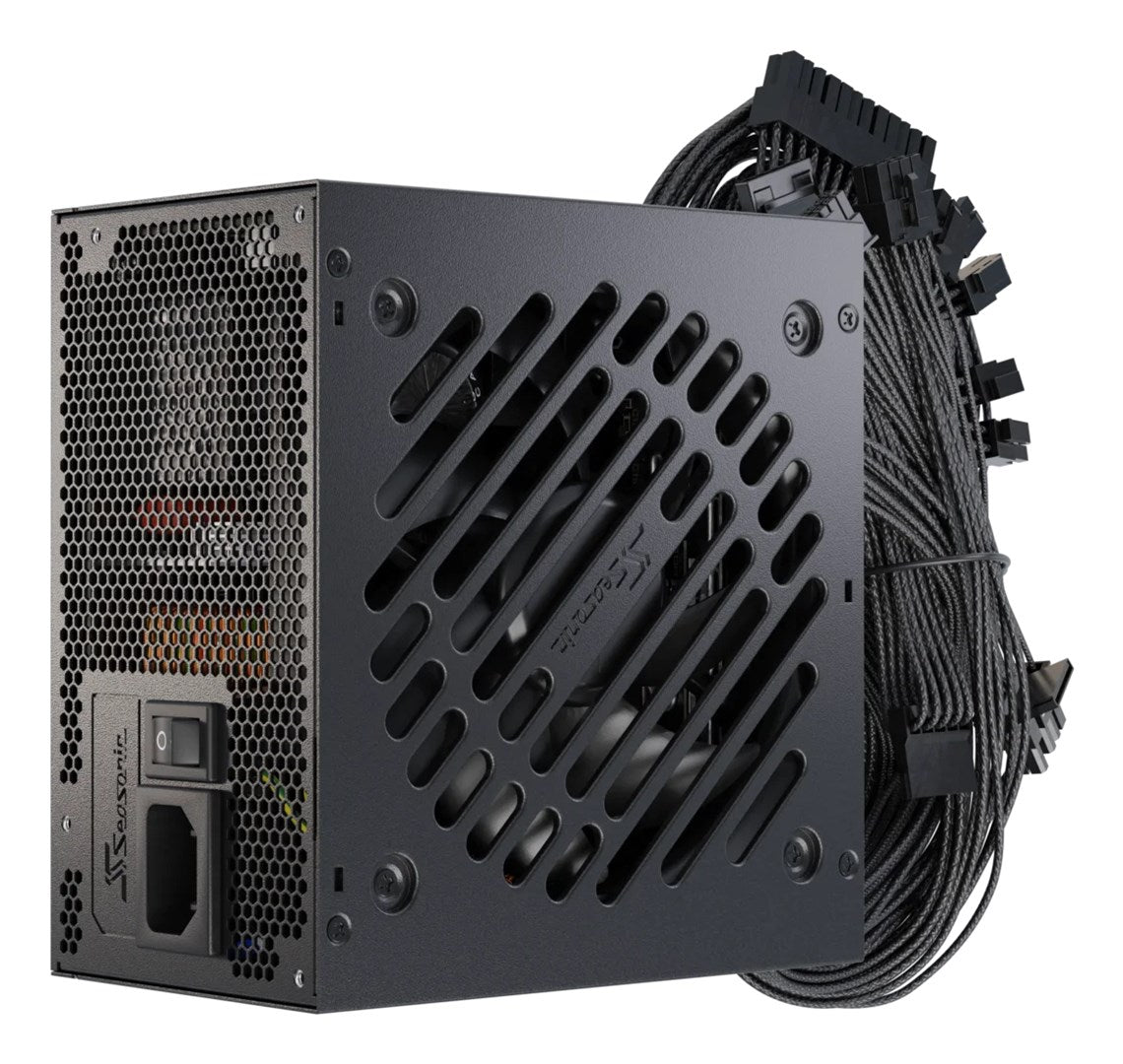

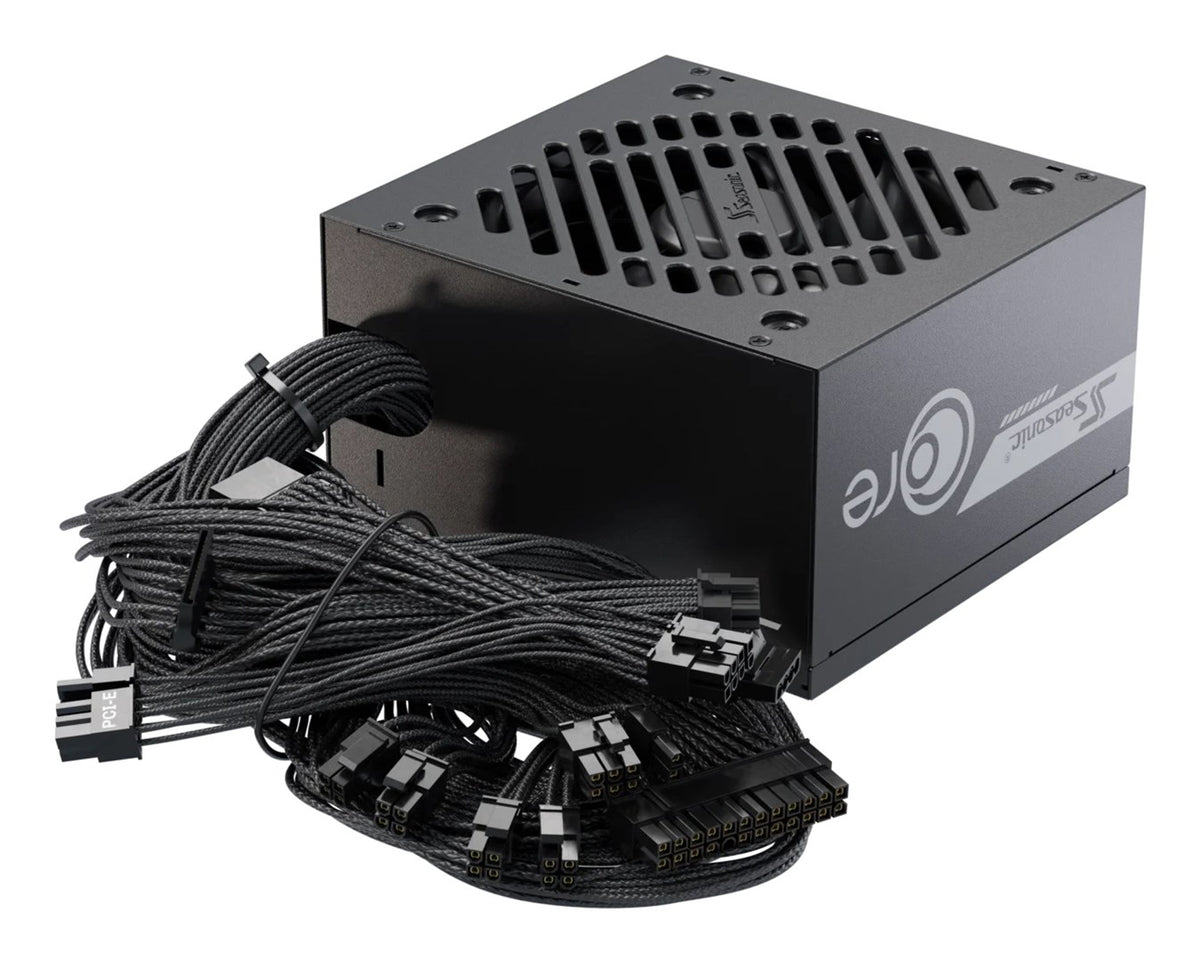

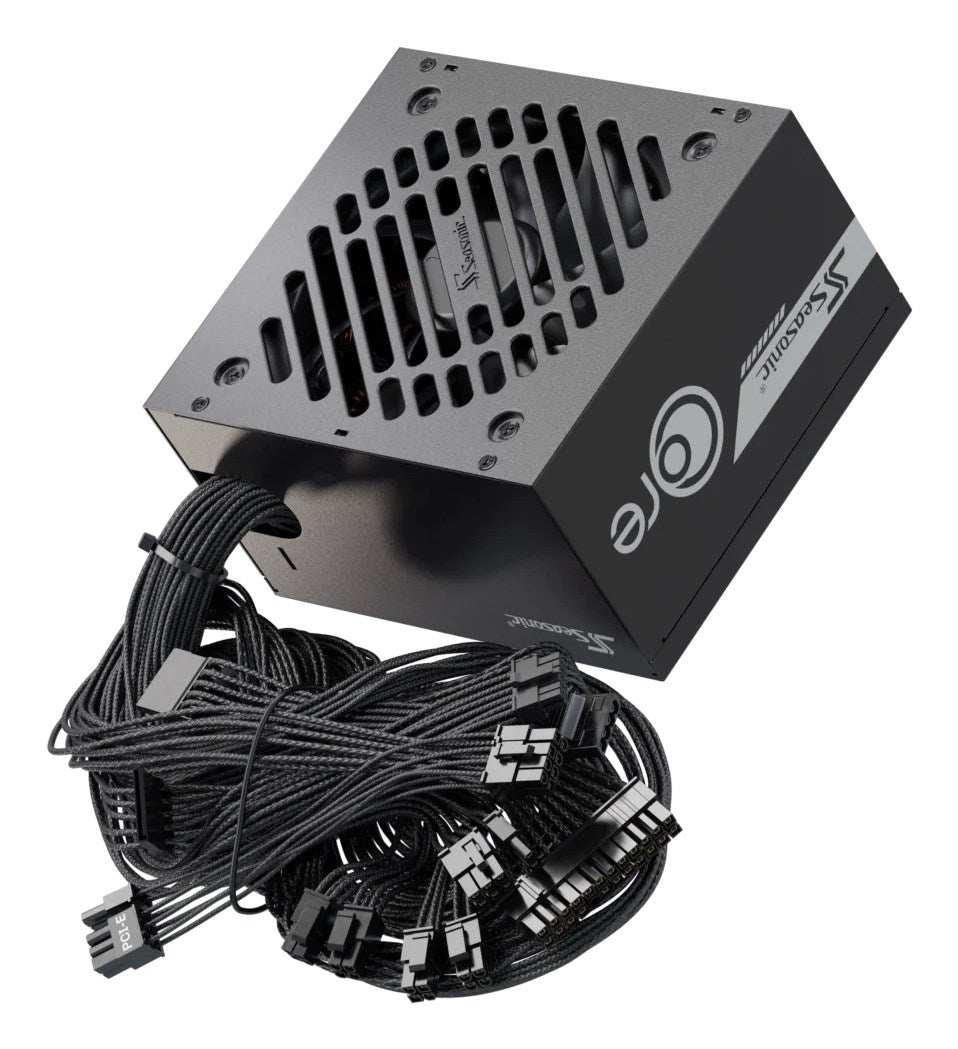

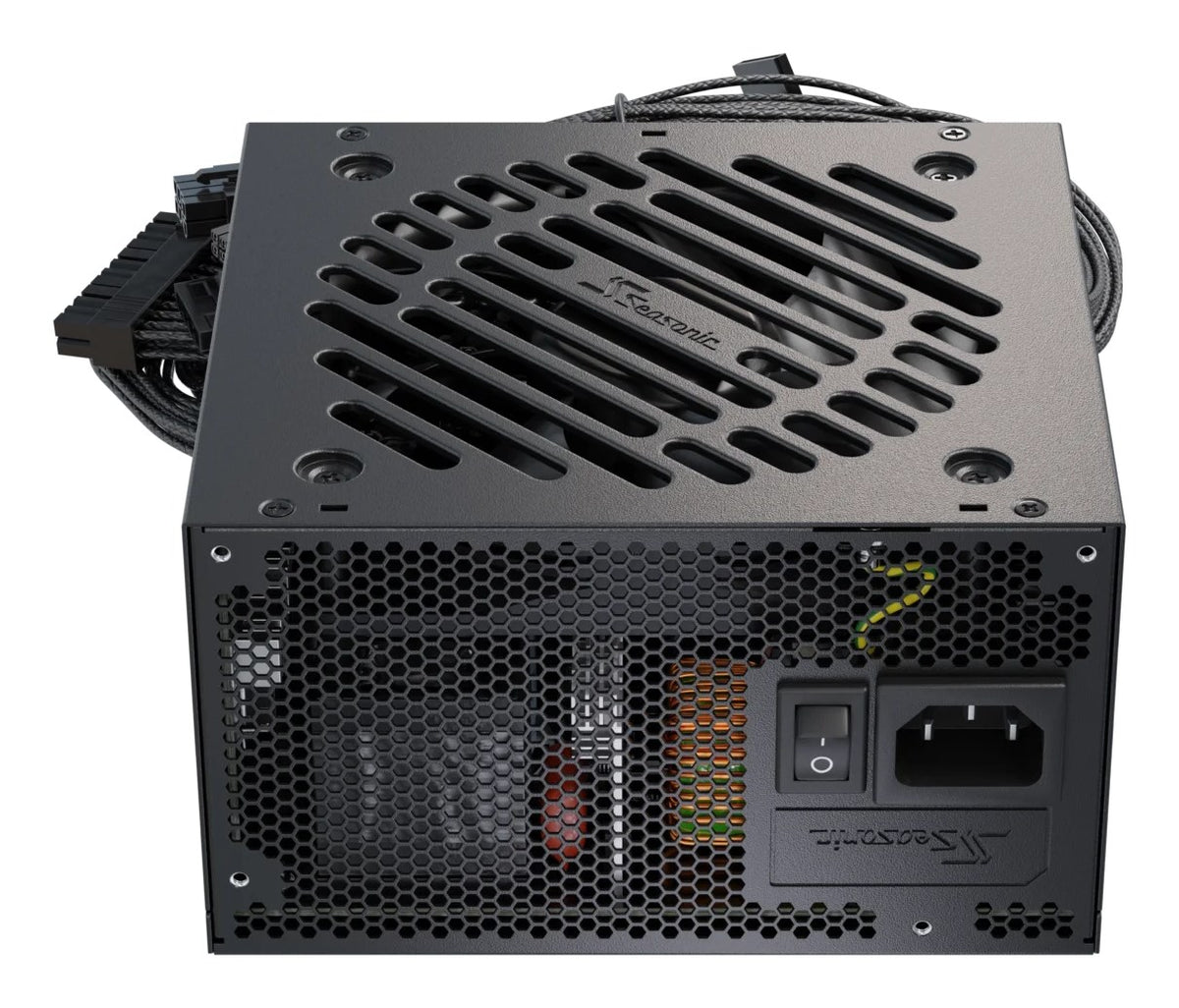

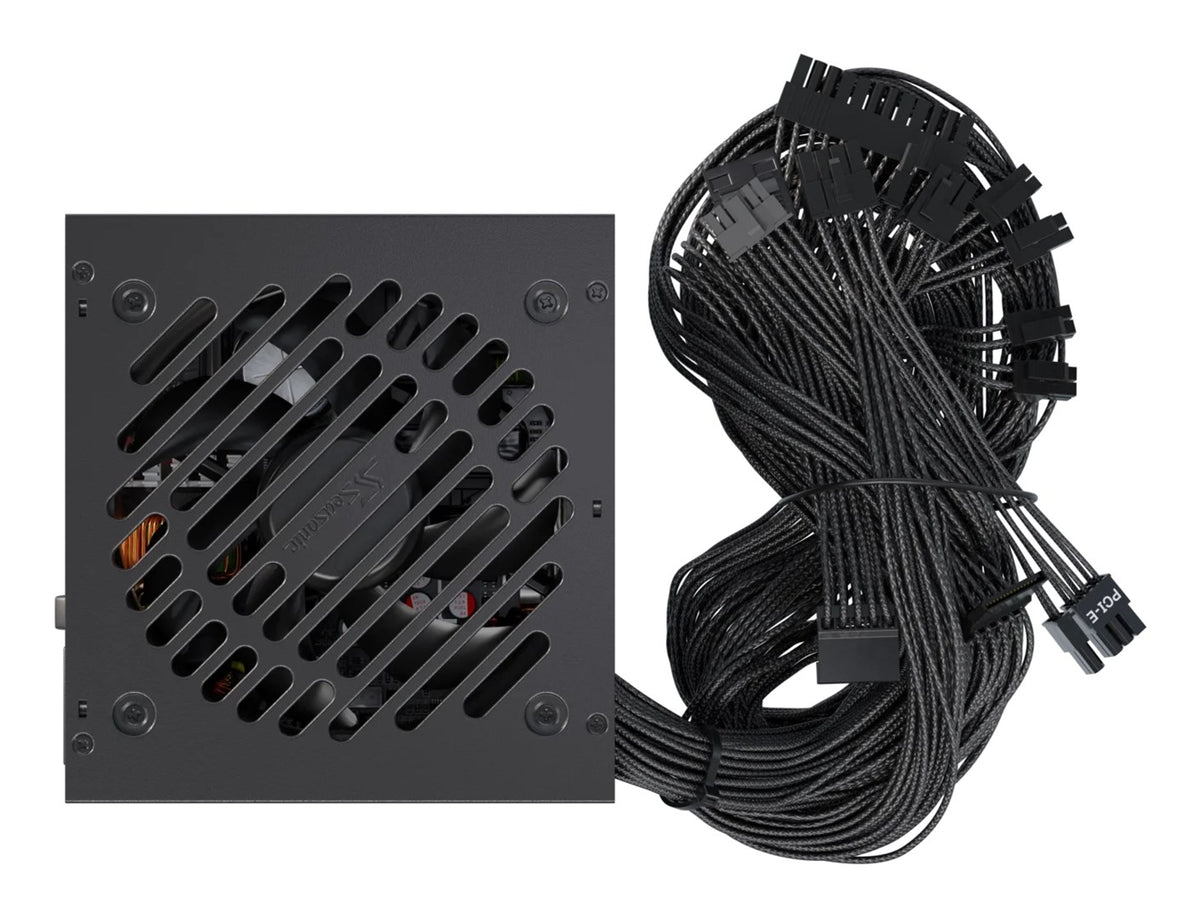

The Seasonic 100683868 CORE BC-650 power supply unit is designed for PC applications, offering a total power output of 650W. This unit includes an active cooling mechanism with a single 12 cm fan and adheres to the 80 PLUS Bronze certification for efficiency ratings of 85%. The device operates on an AC voltage range of 100 to 240 V and features several protection mechanisms including short circuit, over power, over current, and over voltage. It provides a comprehensive output capability with a maximum of 54 A on the +12V rail and includes multiple connectors for optimal compatibility with modern systems.
Key Features
- 650W total power
- 80 PLUS Bronze certification
- Single fan for cooling
- Over power and short circuit protection
- AC input voltage: 100 - 240 V
- Max output current on +12V: 54 A
- Cabling type: Non-Modular
Specifications
Brand: Seasonic
Model Number: 100683868
Product Type: Power supply unit
Weight (g): 2080
Width (mm): 190
Height (mm): 116
Length (mm): 242
Power (W): 650
Battery Count: 0
Power Source: AC
Fan Diameter: 120
Cooling Type: Active
Motherboard Power Connector: 20+4 pin ATX
Max Output Current Plus12V: 54
Max Output Current Plus5V: 2.5
Max Output Current Plus3 3V: 20
Max Output Current Negative12V: 0.3
Combined Power Plus12V: 648
Ac Input Frequency: 50/60 Hz
Input Current: 9 - 4.5 A
Combined Power Plus3 3V: 100
Combined Power Plus5V: 100
Combined Power Negative12V: 3.6
Max Output Current Plus5Vsb: 20
€110,95
