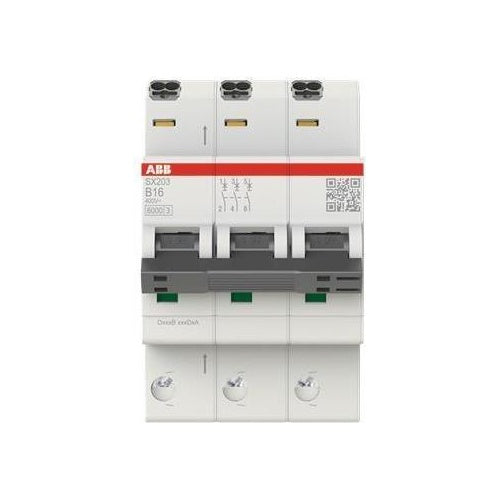

Installation depth 69 mm, tripping characteristic B, number of poles (total) 3, number of protected poles 3, rated current 16 A, rated voltage 400 V, rated insulation voltage Ui 440 V, rated impulse withstand voltage Uimp 4 kV, voltage type AC, rated breaking capacity Icn according to EN 60898 at 400 V 6 kA, frequency 50 - 60 Hz, energy limiting class 3, switched neutral conductor no, overvoltage category 3, pollution degree 2, additional devices possible no, width in modular units 3, protection class (IP) IP20, ambient temperature during operation -25 - 55 C, installation material: meter screw/distribution board, DIN rail installation device, ABB circuit breaker Flexline SX203-B16 B-characteristic 6kA 2CDS253003R0165.
€64,43
