Description

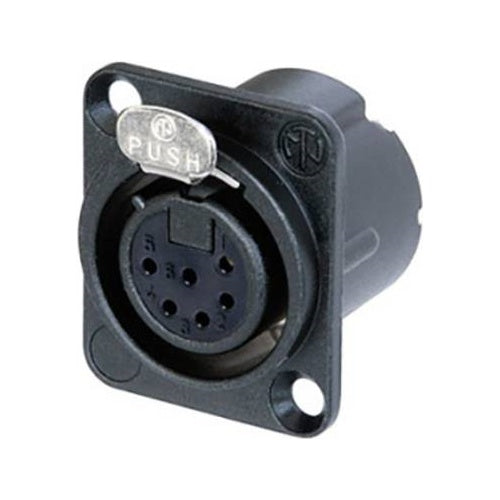

The Neutrik NC6FD-LX-B is a 6-pin XLR female chassis connector engineered for professional audio and video applications. It supports a nominal current of 7.5 A at 50 V AC and is rated for operation in temperatures from –30 to +80 °C. The connector features brass contacts with a solder termination and a Push-Pull locking mechanism. Its black housing and integrated ground contact ensure reliable signal integrity and secure panel mounting.
Key Features
- 6-pin XLR female chassis mount
- 7.5 A nominal current
- 50 V AC nominal voltage
- Temperature range −30 to +80 °C
- Brass contacts
- Push-Pull locking
Specifications
Brand: NEUTRIK
Model Number: NC6FD-LX-B
Product Type: XLR connector
Color: Black
Number Of Poles: 6
Nominal Current A: 7.5
Nominal Voltage V: 50
Temperature Min C: -30
Temperature Max C: 80
Contact Material: Brass
Connection: solder
Ground Contact: true
Locking Type: Push-Pull
€67,74
