Description

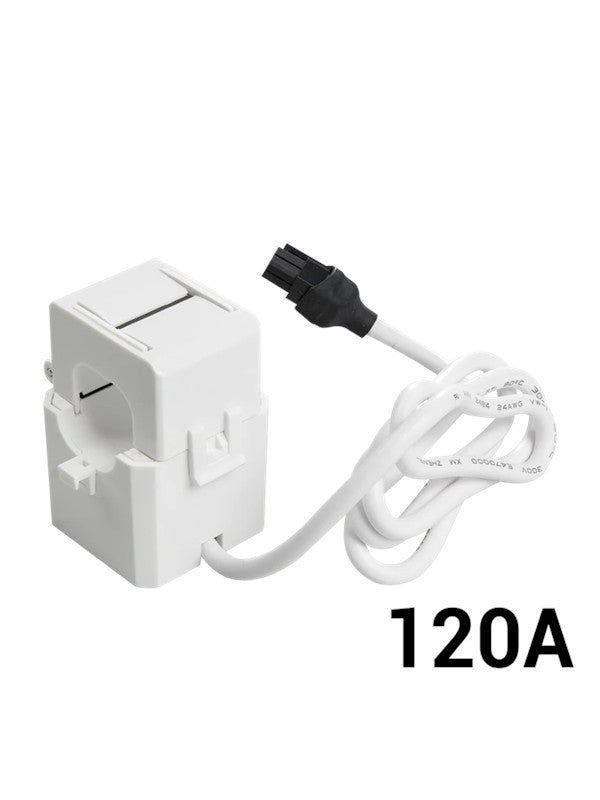

The Shelly EM split-core current transformer for Shelly Pro 3EM is a white accessory enabling precise AC current measurements up to 120 A. Its openable ferrite core accommodates conductors up to 15 mm in diameter and installs without interrupting the circuit using a snap-on design. The unit delivers a 40 mA secondary output at a 3000:1 transformation ratio, features 20 Ω load resistance, and withstands 3000 VAC dielectric stress. A 0.6 m cable terminated with a 2-pin Molex Micro-Fit 43025-0200 connector ensures straightforward integration.
Key Features
- Split-core ferrite design
- Measures up to 120 A
- 3000:1 transformation ratio
- Secondary current 40 mA
- 20 Ω load resistance
- 0.6 m Molex Micro-Fit cable
Specifications
Brand: Shelly
Product Type: Current transformer
Color: White
Compatibility: Shelly Pro 3EM
Cable Length (m): 0.6
Max Current A: 120
Core Material: Ferrite
Max Conductor Diameter Mm: 15
Secondary Current Ma: 40
Transformation Ratio: 3000:1
Dielectric Strength Vac: 3000
Load Resistance Ohm: 20
Connector Type: Molex Micro-Fit 43025-0200
Installation Method: Snap-on
€64,37
