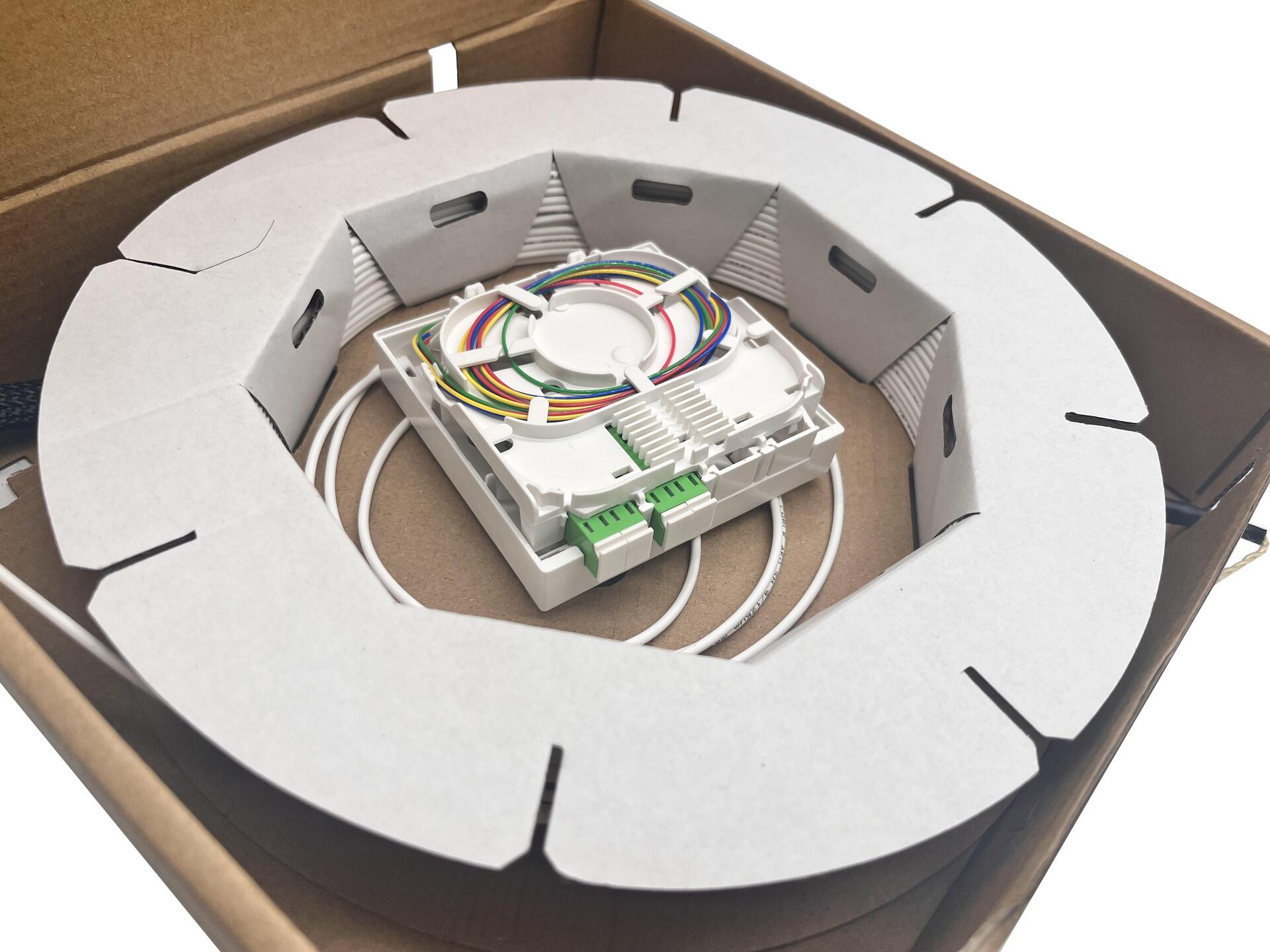

Helos OS2 4-fiber FTTH connection set, pre-assembled on both sides with 4 SC-APC connectors each. This compact FTTH connection set is pre-assembled on both sides, eliminating the need for complex connector installation. This installation is ideal for rapid, high-speed fiber optic connections within buildings. Available in various lengths and configurations. Reduced installation time: Thanks to the insertion aid on one side, the fiber optic cable can be quickly laid to the desired location. Complex splicing of fiber optic connectors is no longer necessary. Technical details: - 4 core installation cable OS2 9/125, G657.A2 LSZH - Fire rating: CPR B2ca s1a, d0.a1 - Pulling device - Joint: 4 x SC/APC Simplex - Connectors: 8 x SC/APC - Standards: IEC 61300-3-4, IEC 6130-3-6 - Cable: G657.A2 4C 250um Yellow Green Blue Red with KEVLAR LSZH jacket OD: 2.2mm - Colour: white Connection box technical details: - 4 SC/APC Simplex joints, laser protection - Wall mounting - RoHS 3.0 and REACH compliant - Temperature: -40 to +75 - Max 8 fibres (crimp type) - ABS material - UL94V2 - Colour: white - Dimensions: 80 x 80 x 28 mm.
€64,86
