Description

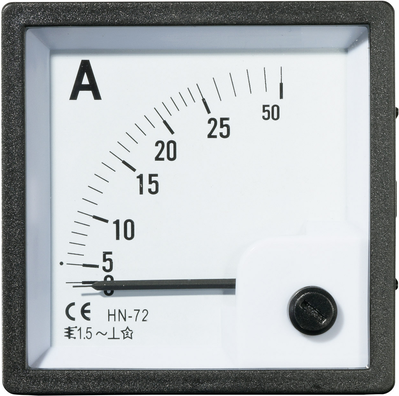

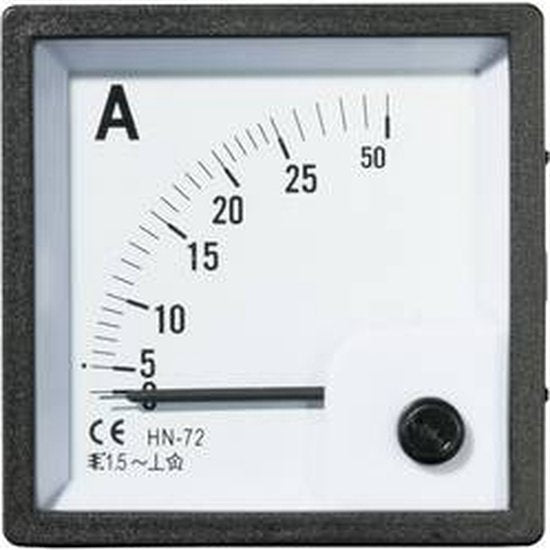

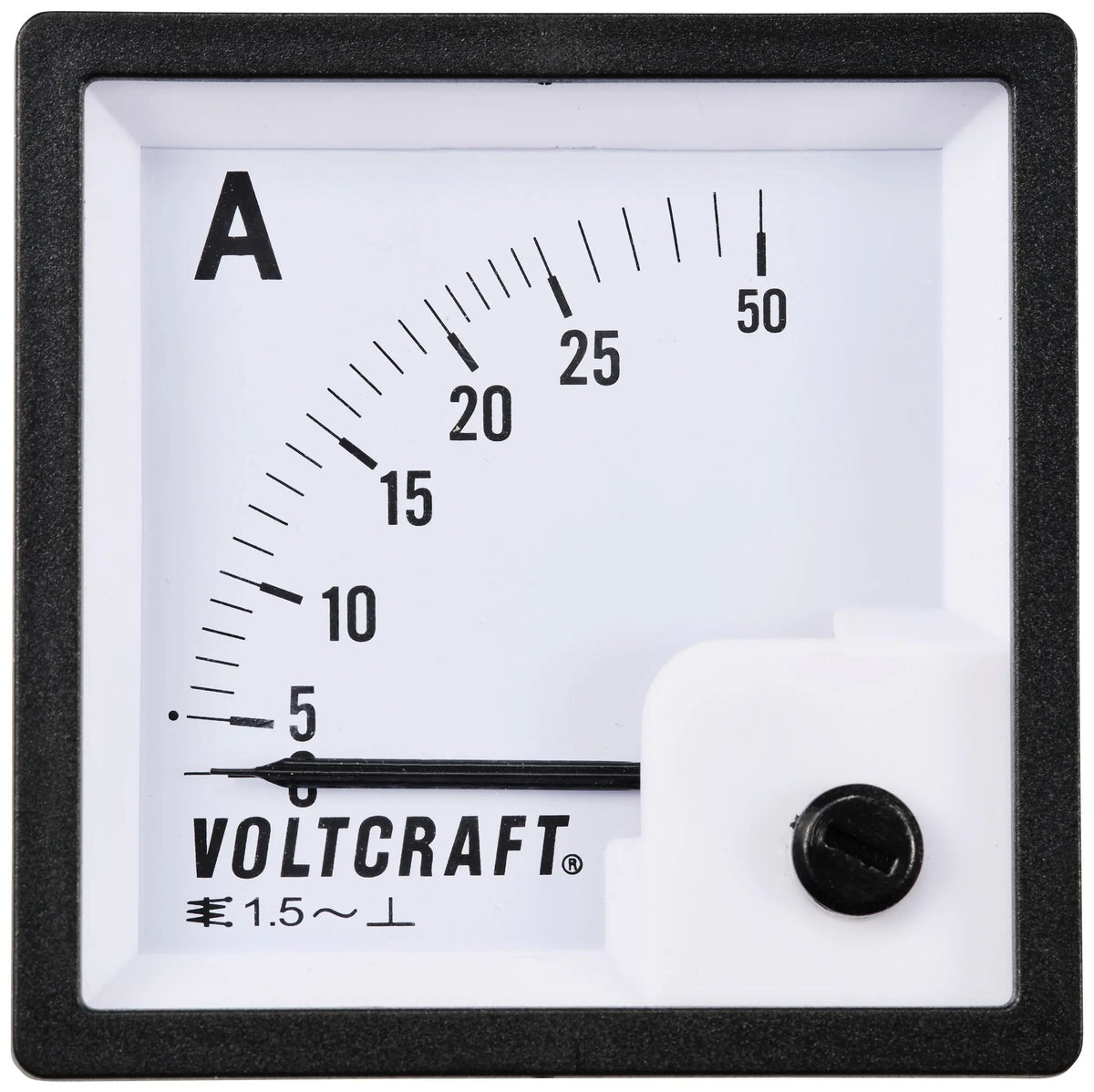

The VOLTCRAFT AM-72X72/25A is an analog panel meter engineered for flush mounting, featuring a 72 x 72 mm front bezel and a ferromagnetic measurement system with a range of 0 to 25 A AC. Factory-calibrated without a certificate and rated CAT III, it integrates into control panels via screw terminal connections and requires a panel cutout of 68 x 68 mm with a 49.5 mm installation depth. The meter is finished in black and white, operates between -25°C and +55°C, weighs 103 g and includes mounting brackets.
Key Features
- 72 x 72 mm bezel
- 0–25 A AC range
- Ferromagnetic measurement system
- CAT III rating
- Screw terminal connections
- Panel cutout 68 x 68 mm
Specifications
Brand: VOLTCRAFT
Model Number: AM-72X72/25A
Product Type: Analog panel meter
Color: Black, white
Width (mm): 72
Height (mm): 72
Depth (mm): 49.5
Weight (g): 103
Measurement Category: CAT III
Calibration: Factory (no certificate)
Panel Cutout Mm: 68 x 68
Connection: Screw terminal
Operating Temperature Range: -25 to 55 °C
Measurement System: Ferromagnetic
Included Accessories: Mounting brackets
€66,24
