Description

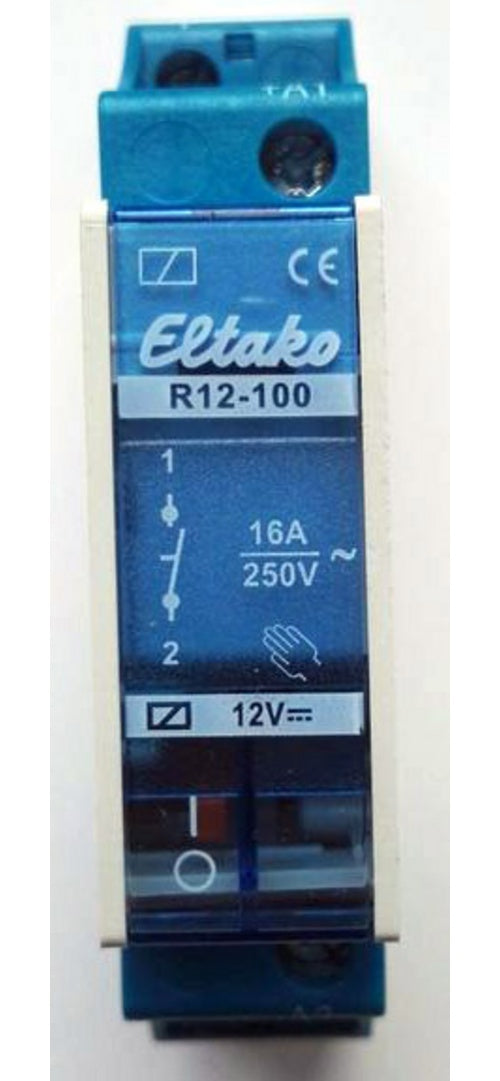

The Eltako R12-100-12V DC is a modular switching relay with a 12 V DC coil requiring 1.9 W of control power. It features a single normally open (1 NO) contact capable of switching up to 8 A and includes a manual toggle with position indicator. Designed for DIN-EN 60715 TH35 rail mounting, the compact unit measures 18 mm in width and 55 mm in height and depth. Its AgSnO2 contacts maintain 3 mm spacing and the relay withstands 2000 V between contacts and 4000 V between coil and contacts across an operating range of -5 °C to 50 °C.
Key Features
- 12 V DC coil voltage
- 1.9 W coil power
- 8 A max switching current
- 1 NO contact
- DIN-EN 60715 TH35 rail mounting
- 3 mm contact spacing
Specifications
Brand: ELTAKO
Model Number: R12-100-12V DC
Product Type: Relais de commutation
Width (mm): 18
Height (mm): 55
Depth (mm): 55
Coil Power W: 1.9
Nominal Voltage V: 12
Switching Current A: 8
Contact Material: AgSnO2
Mounting Standard: DIN-EN 60715 TH35
IP Rating: IP20/IP50
Contact Spacing Mm: 3
Voltage Withstand Contact Contact V: 2000
Voltage Withstand Coil Contact V: 4000
Operating Temperature Min C: -5
Operating Temperature Max C: 50
€64,71
