Description

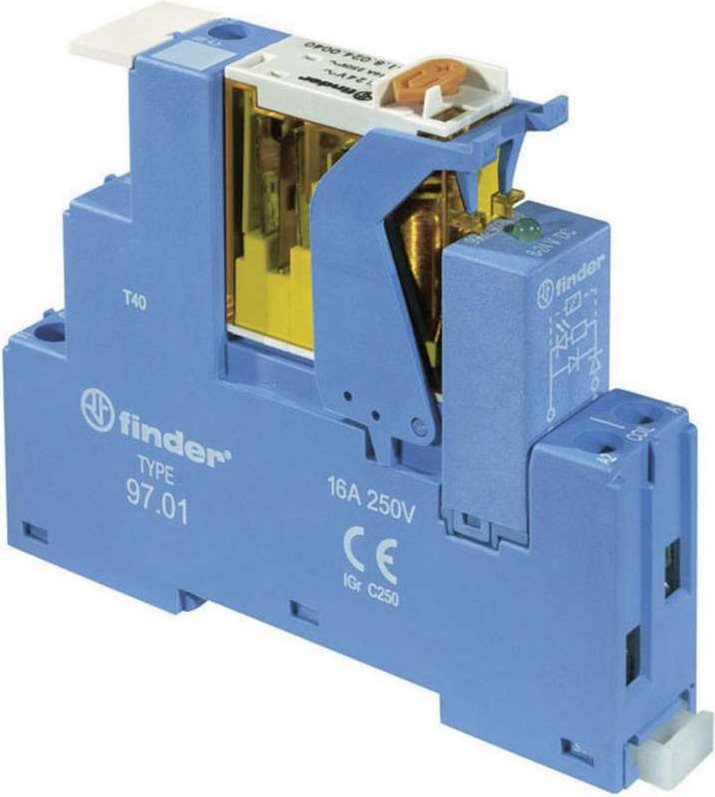

The Finder 4C.01.8.024.0060 relay module operates on a 24 V AC coil and features one changeover contact rated for up to 16 A switching current and 440 V AC switching voltage. It includes a green LED indicator, varistor protection, a mechanical position indicator and a lockable control button. The unit connects via screw terminals, measures 64.6 mm by 15.8 mm by 82.9 mm and carries CE, UL, cRUus, IMQ, CSA, VDE and GOST approvals.
Key Features
- 24 V AC coil voltage
- 16 A max switching current
- 1 changeover contact (RT)
- Includes LED indicator and varistor
- Screw terminal connections
- Model 4C.01.8.024.0060
Specifications
Brand: FINDER
Model Number: 4C.01.8.024.0060
Product Type: relay module
Height (mm): 64.6
Width (mm): 15.8
Length (mm): 82.9
Switching Current A: 16
Switching Voltage Max V: 440
Switching Capacity Va: 4000
Coil Resistance Ohm: 320
Contact Material: AgNi
Connection: screw terminals
Approvals: CE, UL, cRUus, IMQ, CSA, VDE, GOST
€67,74
