Description

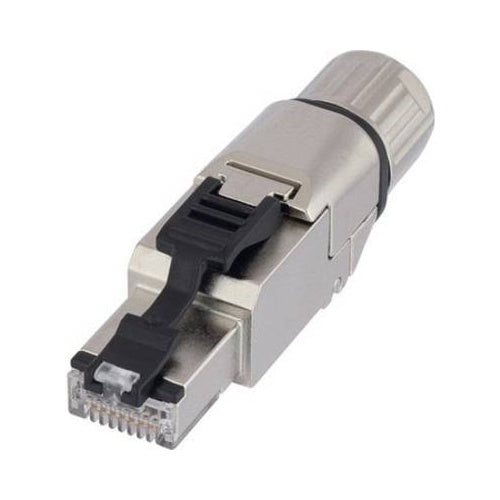

The LAPP ED-IE-AXS-6A-B-20-FC is a tool-free, color-coded RJ45 male connector designed for Cat6a network installations in industrial environments. Its pressure die-cast zinc, nickel-plated housing supports data rates up to 10 Gbit/s and complies with ISO/IEC 11801 standards. The connector accommodates cable diameters from 5.5 mm to 10 mm and core cross-sections from 1.0 mm² to 1.6 mm² (solid AWG 24–22, stranded AWG 27–22) under an IP20 rating.
Key Features
- Cat6a RJ45 male connector
- Up to 10 Gbit/s data rate
- Tool-free assembly
- Color-coded assembly aid
- Die-cast zinc, nickel-plated housing
- IP20 rated
Specifications
Brand: LAPP
Model Number: ED-IE-AXS-6A-B-20-FC
IP Rating: IP20
Width (mm): 10
Height (mm): 5.5
Material: Zinc
Plating: Nickel
Network Specification: CAT 6a
Max Data Rate Gbit S: 10
Cable Diameter Min Mm: 5.5
Cable Diameter Max Mm: 10
Cable Section Min Mm2 Flexible: 1.0
Cable Section Max Mm2 Flexible: 1.6
Cable Section Min Mm2 Rigid: 1.0
Cable Section Max Mm2 Rigid: 1.6
Awg Min: 7
Awg Max: 7
Awg Solid Range: 24-22
Awg Stranded Range: 27-22
Assembly Color Coded: true
€75,70
