Description

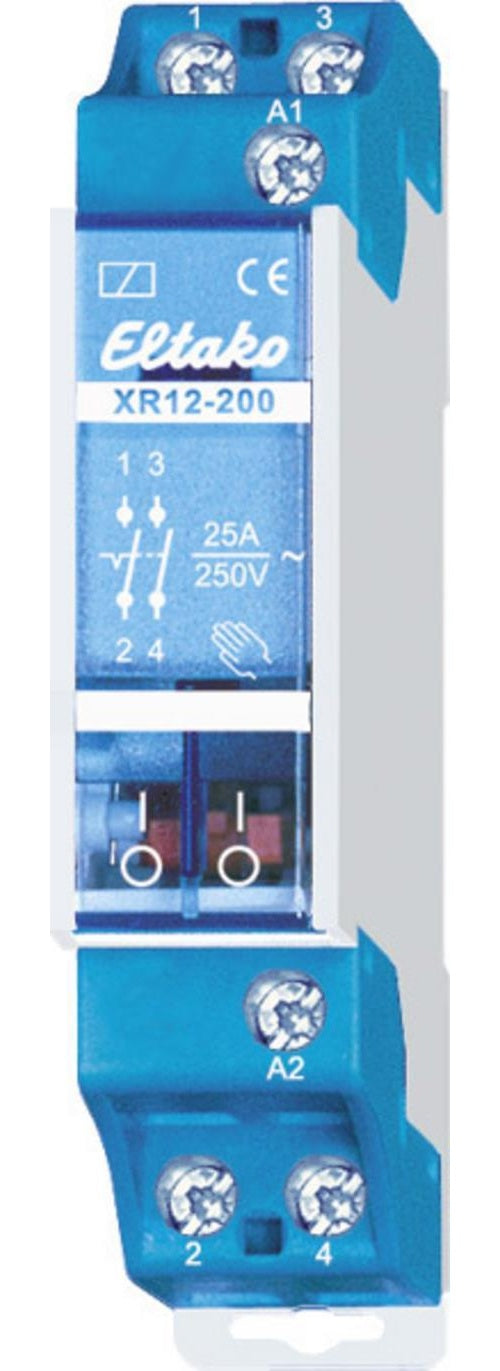

The ELTAKO XR12-200-230V installation contactor features two normally open (NO) contacts rated at 25 A and 250 V AC. Its manual control and switching position indicator provide clear operational feedback. The 230 V coil consumes just 1.9 W and maintains a 3 mm gap between contacts. Dielectric strength tests verify 2000 V between contacts and 4000 V between coil and contacts, all within an IP20 enclosure.
Key Features
- 230 V nominal coil voltage
- 2 NO contacts rated 25 A/250 V AC
- 1.9 W coil power consumption
- Manual control with position indicator
- 2000 V contact-to-contact test voltage
- IP20 protection
Specifications
Brand: ELTAKO
Model Number: XR12-200-230V
Product Type: Installation contactor
Power Source: 230 V AC
Protection Features: IP20
Connection Type: screw terminals
Contact Configuration: 2 NO (T)
Max Continuous Current A: 25
Max Contact Voltage Ac V: 250
Coil Power W: 1.9
Contact Gap Mm: 3
Dielectric Test Voltage Contact Contact V: 2000
Dielectric Test Voltage Coil Contact V: 4000
Mounting Type: DIN rail
€71,00
