Description

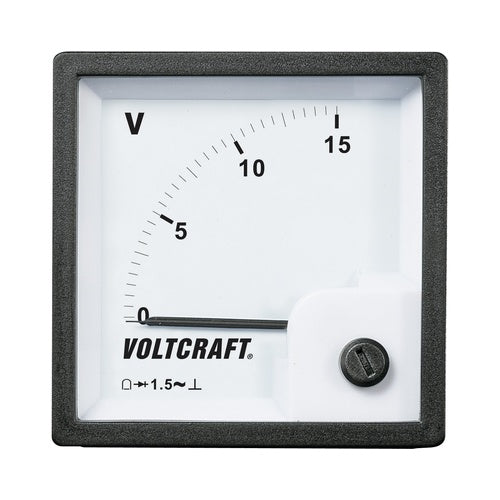

The VOLTCRAFT AM-72x72/15V is an analog panel meter designed for flush mounting with a 72 x 72 mm bezel and a universal measurement range from 0 to 15 V AC. It is factory-calibrated (no certificate) and rated CAT III for safety in control panels. The unit features screw terminal connections, a panel cutout size of 68 x 68 mm and an installation depth of 49.5 mm. Finished in black and white, it operates between -25°C and +55°C, weighs 103 g, and includes mounting brackets.
Key Features
- 72 x 72 mm bezel
- 0–15 V AC range
- CAT III rating
- Screw terminal connections
- Panel cutout 68 x 68 mm
- Factory calibrated
Specifications
Brand: VOLTCRAFT
Model Number: AM-72x72/15V
Product Type: Analog panel meter
Color: Black, white
Width (mm): 72
Height (mm): 72
Depth (mm): 49.5
Weight (g): 103
Measurement Category: CAT III
Calibration: Factory (no certificate)
Panel Cutout Mm: 68 x 68
Connection: Screw terminal
Operating Temperature Range: -25 to 55 °C
Included Accessories: Mounting brackets
€66,37
