Description

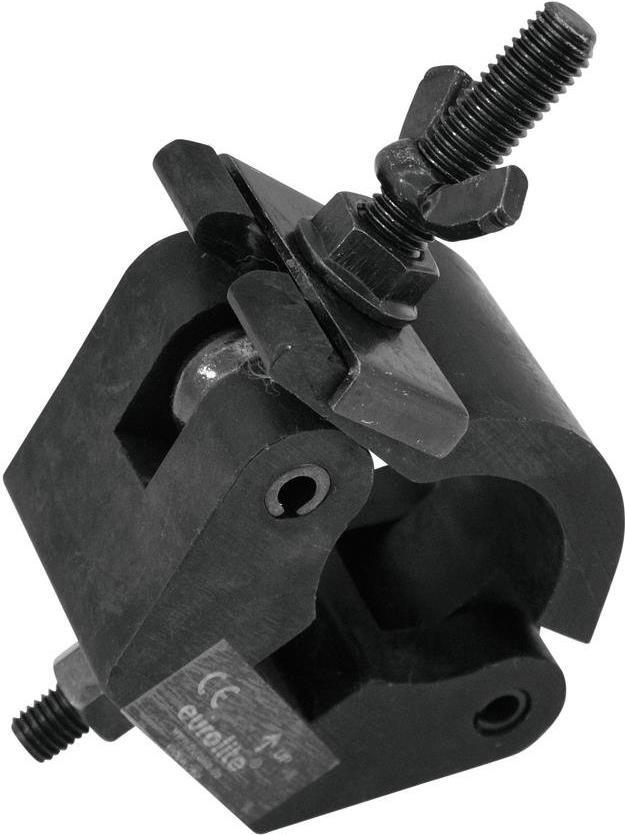

The EUROLITE TPC-50S Half Coupler (59006802) is a heavy-duty aluminium mounting clamp for secure attachment of lighting fixtures to 45–50 mm truss tubes. It features an M10 mounting screw and supports a maximum working load of 800 kg (4× safety factor) or 400 kg per BGV C1 (8× factor). Finished in black, the clamp measures 110 × 50 × 115 mm and weighs 710 g, with packaging that includes a user manual. Its robust design ensures stable fixing in professional stage and event applications.
Key Features
- Supports up to 800 kg WLL (4× safety)
- Fits 45–50 mm truss tubes
- M10 mounting screw
- Aluminium construction
- Net weight 710 g
- 110 mm length
Specifications
Brand: EUROLITE
Model Number: TPC-50S
Product Type: Half coupler / mounting clamp
Material: Aluminium
Color: Black
Length (mm): 110
Width (mm): 50
Depth (mm): 115
Weight (g): 710
Suitable Tube Diameter Mm: 45–50
Maximum Load Wll Kg: 800
Maximum Load Bgv C1 Kg: 400
Mounting Screw: M10
€67,49
