Description

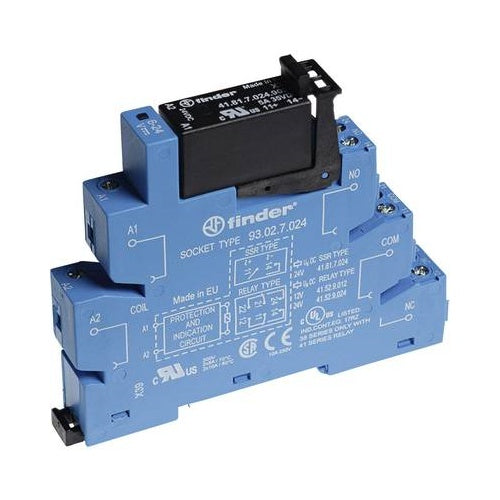

The Finder 38.31.7.024.9024 Solid State Interface Relay is a slim 14 mm DIN-rail module for 24 V DC control circuits. It delivers an electronic DC output up to 5 A with a control voltage range of 16.8–30 V DC and maximum switching voltage of 35 V DC. The relay features one normally open contact, screw terminal connections and an LED indicator in an 89.7 × 14 × 72.1 mm housing. It is RoHS compliant and made in Italy.
Key Features
- 24 V DC input voltage
- 16.8–30 V DC control voltage range
- Control current max 12 mA
- Electronic DC output up to 5 A
- Output voltage range 1.5–24 V DC
- Maximum switching voltage 35 V DC
- 1 normally open contact
- Screw terminal connections
- LED indication
- 14 mm width
- 89.7 mm height
- 72.1 mm depth
- DIN-rail mounting
- RoHS compliant
- Made in Italy
Specifications
Brand: Finder
Model Number: 38.31.7.024.9024
Product Type: Solid-state relay
Input Voltage V: 24
Control Voltage Range V: 16.8-30
Control Current Max Ma: 12
Output Voltage Range V: 1.5-24
Maximum Switching Voltage V: 35
Rated Operating Current A: 5
Output Type: Electronic
Contact Type: 1 normally open contact
Connection Type: Screw terminal
LED Indicators: true
Width (mm): 14
Height (mm): 89.7
Depth (mm): 72.1
Din Rail Mounting: true
Rohs Compliant: true
Country Of Origin: Italy
Quantity Supplied: 1
€81,37
