Description

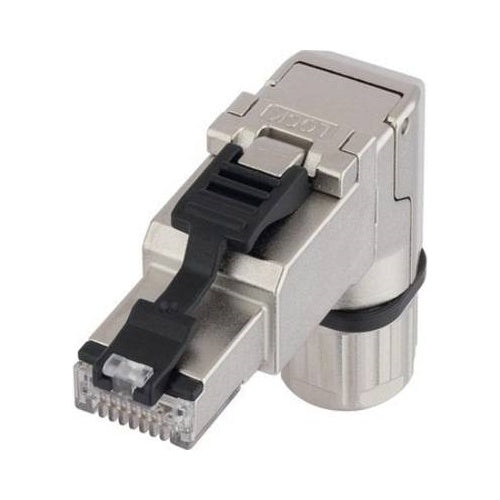

The Lapp Italia ED-IE-90-6A-A-20-FC industrial RJ45 connector supports Cat 6A installations per ISO/IEC 11801 and data rates up to 10 Gbit/s. Featuring a right-angled male design, it enables tool-free assembly with a color-coded aid for PROFINET and TIA coding. The zinc die-cast housing and IP20 rating suit harsh industrial environments. It accommodates cable outer diameters from 5.5 mm to 10 mm for on-site assembly.
Key Features
- Cat 6A RJ45 male connector
- Data rates up to 10 Gbit/s
- Tool-free assembly
- Color-coded assembly aid
- Right-angled design
- IP20 rating
Specifications
Brand: LAPP ITALIA S.R.L.
Model Number: ED-IE-90-6A-A-20-FC
Product Type: RJ45 connector
Material: Zinc die-cast
IP Rating: IP20
Height (mm): 5.5
Width (mm): 10
Network Specification: CAT 6a
Number Of Poles: 8
Cable Outer Diameter Min Mm: 5.5
Cable Outer Diameter Max Mm: 10
Maximum Data Rate Gbit S: 10
Tool Free Assembly: true
Color Coding Assist: true
Connector Orientation: right-angled
€70,14
