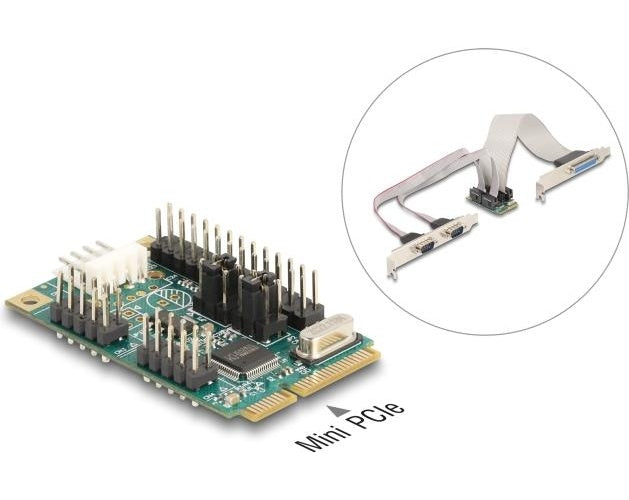

This Mini PCIe module from Delock offers two serial and one parallel interface, which you can connect externally via the slot support. You can connect various serial and parallel devices such as printers, scanners, and modems to the adapter. Optional power supply via RS-232 The connected devices can optionally be powered with a voltage of 5 V or 12 V. Technical data - Connections: External: 2 x 9-pin serial D-Sub connector 1 x 25-pin parallel D-Sub socket Internal: 1 x Mini PCI Express, Rev. 1.2 2 x 10-pin male connectors 1 x 26-pin male connector 1 x 4-pin male connector for floppy disk - Chipset: WCH382L - Form factor: Mini PCIe full size - Serial specifications: - Data transfer rate up to 460.8 Kbps - FIFO: 2 x 256 Byte - Data bits: 5, 6, 7, 8 - Stop bits: 1, 2 - Parity bits: even, odd, none, marked, blank - Flow control: none, hardware RTS/CTS, software XON/XOFF - Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V - Jumper for setting RI or 5V / 12V on pin 9 - Power per port: max. 20 Watt (5V / 4A) - Power per port: max. 48 Watt (12V / 4A) - Parallel specifications: - Data transfer rate up to 1 Mbps - Compatible with SPP, PS2, EPP, ECP according to IEEE 1284 - Cable length including connections: approx. 25 cm - Dimensions (WxDxH): approx. 51 x 30 x 10 mm System requirements - Windows 10/10-64/11 - Windows Server 2022 - Motherboard with a free Mini PCIe slot with PCIe interface Package contents - Mini PCIe module - 2 x serial connection cables - 1 x parallel connection cable - 2 x standard covers - 3 x low-profile covers - Operating instructions.
€78,07
