Description

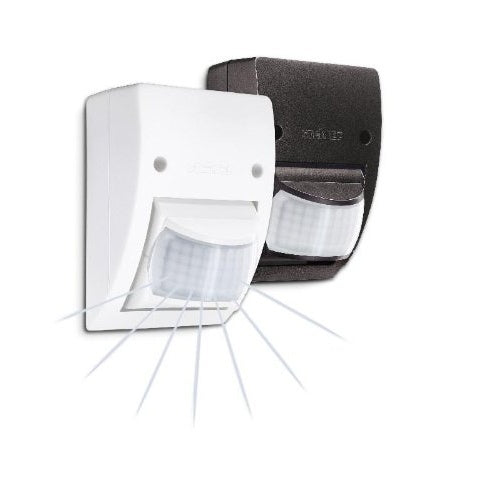

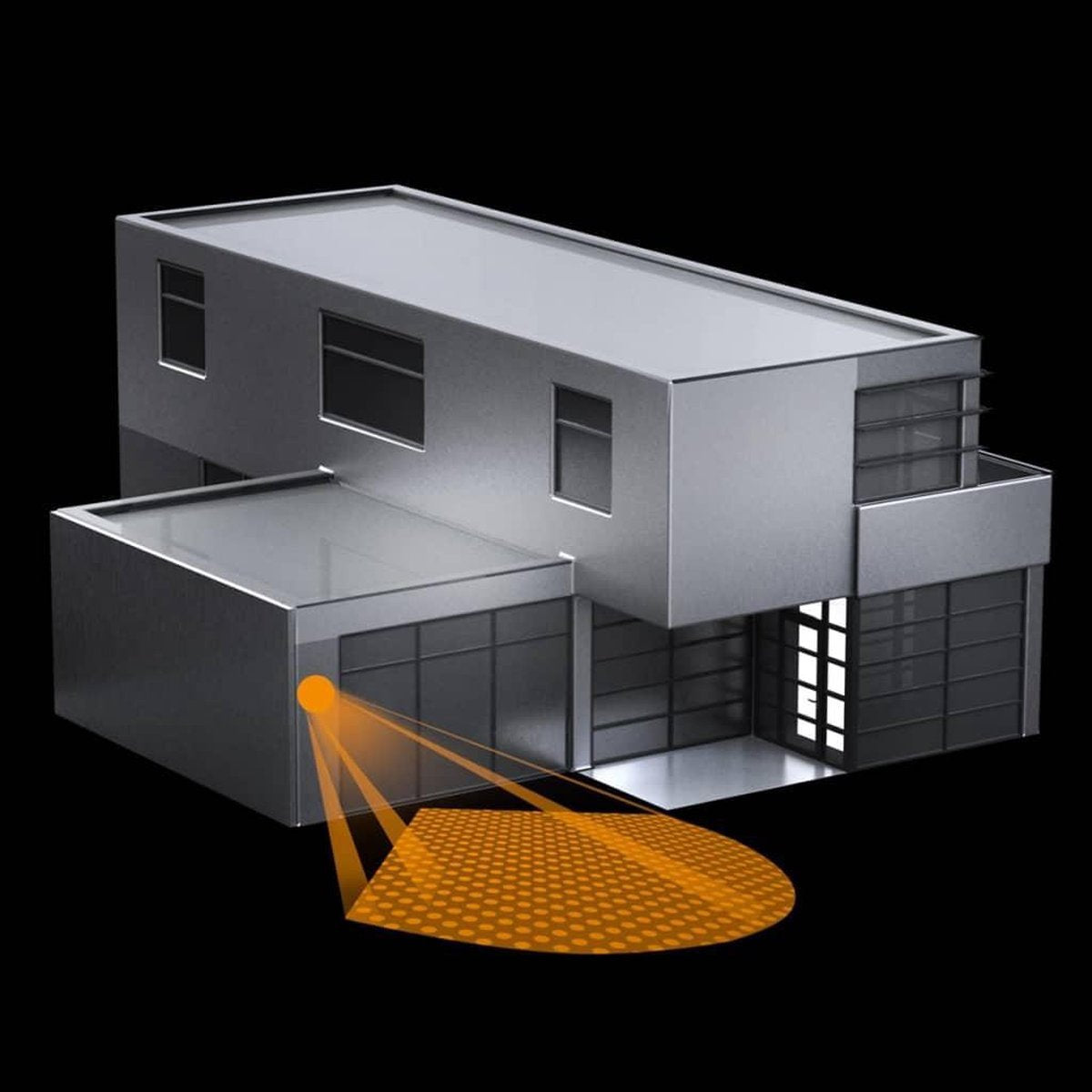

The Steinel IS 2160 ECO motion sensor integrates an infrared passive detector to monitor areas up to 12 m with a 160° horizontal field of view. It supports both interior and exterior installations, powering loads up to 600 W for incandescent lamps and 500 VA for inductive loads on 230-240 V AC, 50 Hz mains. The compact white plastic housing measures 113 × 78 × 73 mm and features IP54 protection and Class II insulation for outdoor resilience. Adjustable horizontal (40°) and vertical (70°) orientations plus five detection levels across 260 zones enable precise coverage segmentation.
Key Features
- 160° detection angle
- 12 m max range
- 600 W incandescent load
- 230-240 V AC, 50 Hz
- IP54 rating
- Passive infrared sensor
Specifications
Brand: Steinel
Model Number: IS 2160 ECO
Product Type: Motion sensor
Color: White
Material: Plastic
Length (mm): 113
Height (mm): 78
Depth (mm): 73
Power Source: 230-240 V AC, 50 Hz
Power (W): 600
IP Rating: IP54
Mounting Type: Wall
Detection Angle Deg: 160
Max Range M: 12
Orientation Horizontal Deg: 40
Orientation Vertical Deg: 70
Detection Levels: 5
Switching Zones: 260
Application: Indoor and outdoor
€82,55
