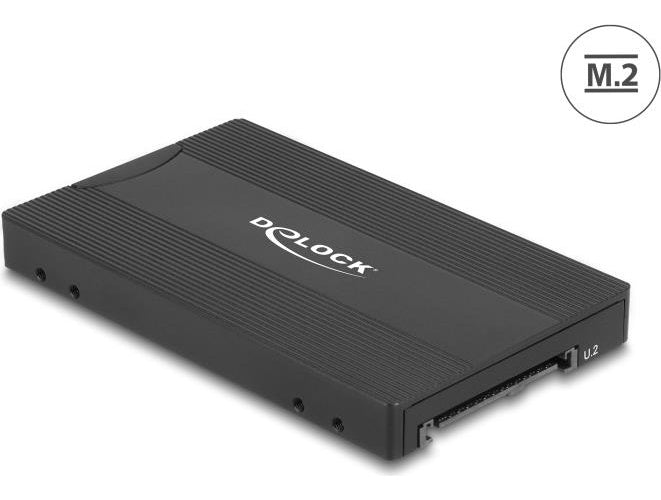

This converter by Delock allows the installation of an M.2 PCIe NVMe SSD with Key M or an M.2 SATA SSD with Key B in the formats 2280, 2260, 2242 and 2230. When using an NVMe SSD, the converter connects to the U.2 interface, while for a SATA SSD it connects to the SATA interface. The converter can be inserted into a 2.5" slot of a HDD/SSD docking station. The special feature of this converter is that no tools are required to install the M.2 SSD. The SSD is inserted into the slot and secured to the board with a rubber grommet. The upper part, which is made of metal, is connected to the installed SSD via a thermal pad inside. This ensures good cooling of the SSD. Technical data: - Connections: external: 1 x U.2 SFF-8639 connector 1 x SATA 6 Gb/s 22-pin connector internal: 1 x M.2 Key M slot 1 x M.2 Key B slot - Supports M.2 modules in the formats 2280, 2260, 2242 and 2230 with Key M, Key B or Key B+M on a SATA or PCIe basis - Maximum component height on the module: 1.5 mm, use of double-sided modules possible - Supports NVM Express (NVMe) - Supports SMART - Supports TRIM - Dimensions (WxDxH): approx. 115 x 70 x 12 mm - Operating system independent, no driver installation required System requirements: - A free U.2 SFF-8639 interface or - A free 22-pin SATA interface Package contents: - Converter - Screws - User manual Packaging: - Retail box.
€84,01
