Description

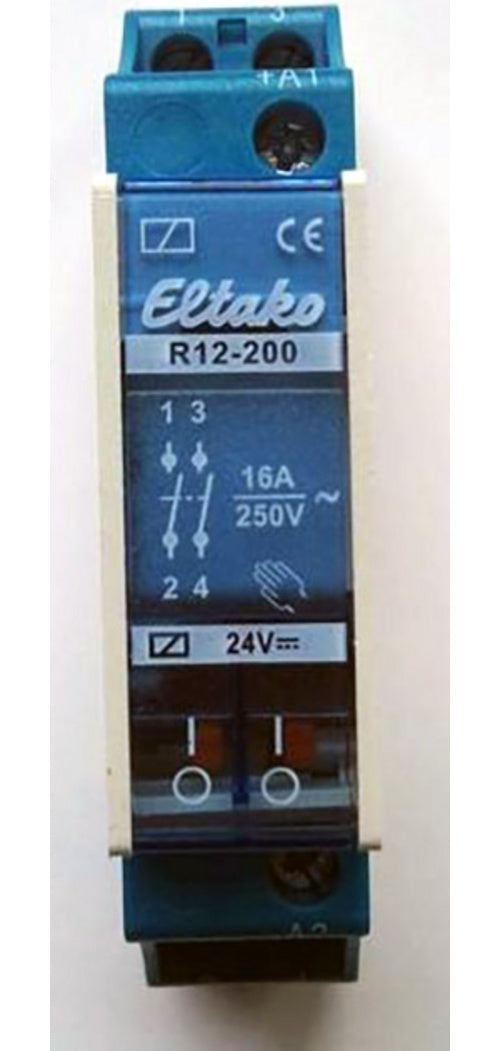

The ELTAKO R12-200-24V DC is a modular electromechanical switching relay featuring a 24 V DC control voltage and two normally open contacts. It mounts in-line on a DIN-EN 60715 TH35 rail and occupies one 18 mm module with a 55 mm depth. The relay offers manual operation with position indication, 3 mm contact spacing and a coil power consumption of 1.9 W. It endures test voltages of 2000 V between contacts and 4000 V between coil and contacts, operates from -5 °C to 50 °C and carries an IP20/IP50 protection rating.
Key Features
- 24 V DC control voltage
- Max switching current 8 A
- 2 normally open contacts
- DIN-EN 60715 TH35 rail mounting
- Coil power consumption 1.9 W
- IP20/IP50 protection rating
Specifications
Brand: ELTAKO
Model Number: R12-200-24V DC
Product Type: Switching relay
Width (mm): 18
Depth (mm): 55
Height (mm): 55
Control Voltage V: 24
Max Switching Current A: 8
Coil Power W: 1.9
Contact Spacing Mm: 3
Test Voltage Contact To Contact V: 2000
Test Voltage Coil To Contact V: 4000
Min Operating Temperature C: -5
Max Operating Temperature C: 50
Contact Material: AgSnO2
IP Rating: IP20/IP50
Mounting: DIN-EN 60715 TH35
€71,39
