Description

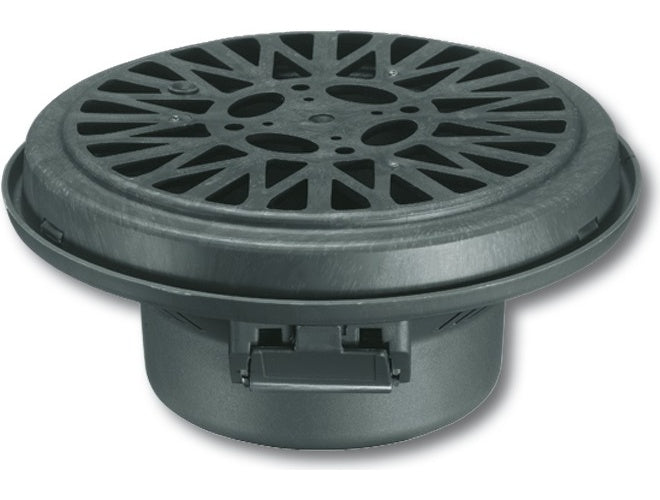

The Busch-Jaeger 2CKA008200A0109 speaker module features a 5-inch wideband driver with a special membrane for moisture-prone environments. It delivers 7 W RMS output across 84 to 16,500 Hz at 16 Ω impedance through screw terminals, making it suitable for integration with Busch-Radio DAB+ and BTconnect systems. The black thermoplast housing mounts flush into ceilings or walls, measuring 148 × 148 × 69 mm and weighing 422 g. Rated IP20 and operational between -20 °C and +55 °C, it provides reliable audio performance in damp rooms.
Key Features
- 7 W RMS nominal power
- 5-inch wideband driver
- Frequency range 84–16,500 Hz
- 16 Ω impedance
- Moisture-resistant IP20 design
Specifications
Brand: Busch-Jaeger
Model Number: 2CKA008200A0109
Product Type: Speaker module
Color: Black
Material: Thermoplast
Power (W): 7
IP Rating: IP20
Width (mm): 148
Height (mm): 148
Depth (mm): 69
Weight (g): 422
Frequency Range Hz: 84–16500
Impedance Ohm: 16
Moisture Resistant: true
Mounting Type: Flush-mounted
Mounting Positions: Ceiling, Wall
Number Of Drivers: 1
Driver Size Inch: 5
Temperature Range C: -20 to 55
€93,60
