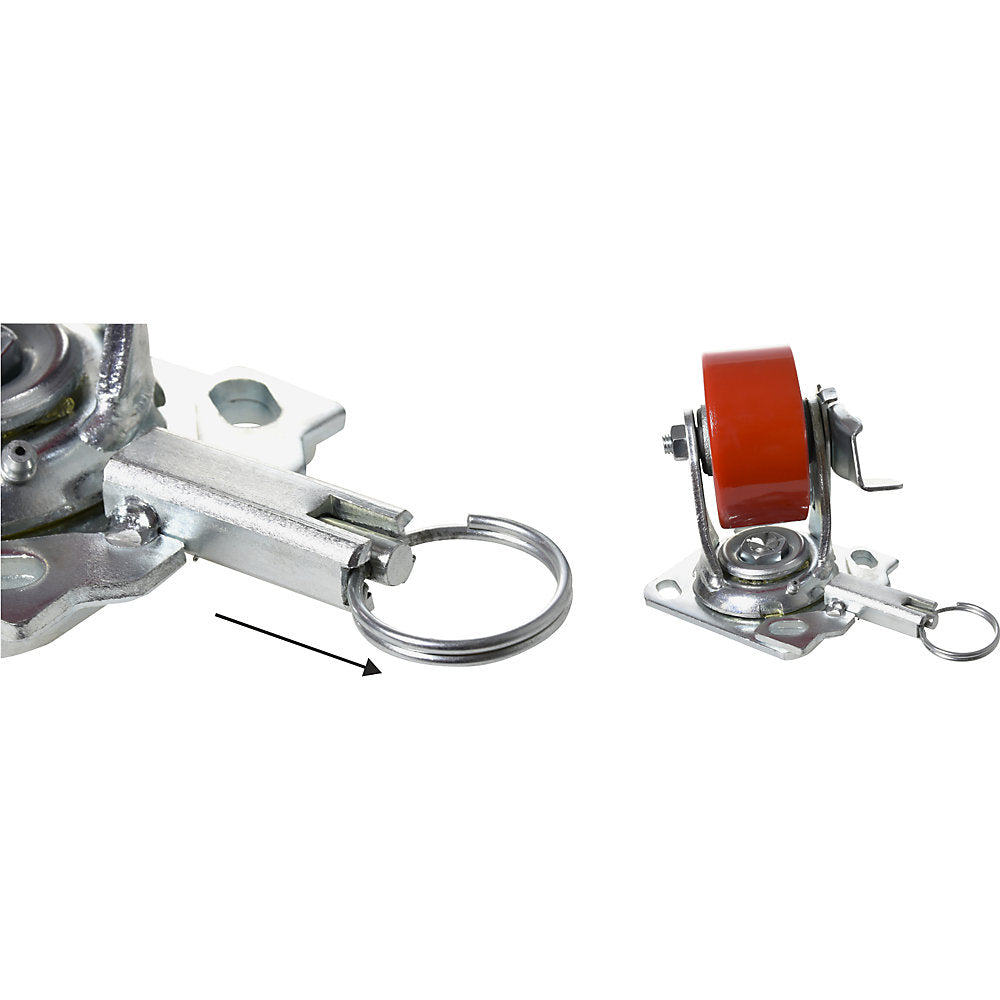

Heavy-duty swivel/fixed caster 3 in 1, load capacity 230 kg, wheel diameter x width 100 x 50 mm. Delivered assembled. Wheel diameter 100 mm. Design: swivel caster with brake, fixed caster. Wheel material: polyurethane. Housing material: cast iron. Load capacity at 4 km/h: 230 kg. Mounting type: plate. Wheel width 50 mm. Overall height 135 mm. Wheel bearing: roller bearing. Swivel caster projection: 27 mm. Mounting hole diameter: 11 mm. Mounting plate dimensions (fixed caster): 100 x 115 mm. Mounting plate dimensions (swivel caster): 100 x 115 mm. Mounting hole spacing: 74 x 85 mm. Direction lock. Transformation lever. Powerful side brake. The housing, mounting plate, and side brake of the heavy-duty swivel/fixed caster are made of extra-thick-walled, galvanized steel. The wheel body is made of heavy, solid cast iron, and the elastic soft tread is made of high-quality polyurethane. Technology + Design: For particularly demanding applications, this caster is the first choice! This innovative heavy-duty caster is manufactured to the highest quality standards in terms of materials and workmanship, and equipped with clever technical details. This makes it exceptionally safe, highly durable, and highly flexible: it features a powerful side brake and can be used as either a swivel or fixed caster, depending on the requirements. The integrated Direction Lock, a directional locking mechanism for precise straight-line tracking or unrestricted movement in all directions, makes conversion quick and easy: simply pull the transformation lever, turn, lock into place – done! Another user advantage: the caster is particularly easy to maintain, as it is equipped with two injection nozzles for lubricant in the ball bearing and roller bearing. The floor-friendly soft tread of the wheel ensures scratch- and streak-free mobility on all hard/sensitive floor surfaces. A strong side brake securely fixes the caster in the desired position. The casters and wheels are tested for quality, safety, and durability. Heavy-duty swivel/fixed caster (convertible with Direction Lock) with mounting plate and side brake. Wheel diameter 100 mm, overall height 135 mm, load capacity 230 kg. Housing, side brake and mounting plate made of galvanized steel, wheel body made of solid cast iron, soft polyurethane tread for hard/sensitive floor surfaces.
€78,38
