Description

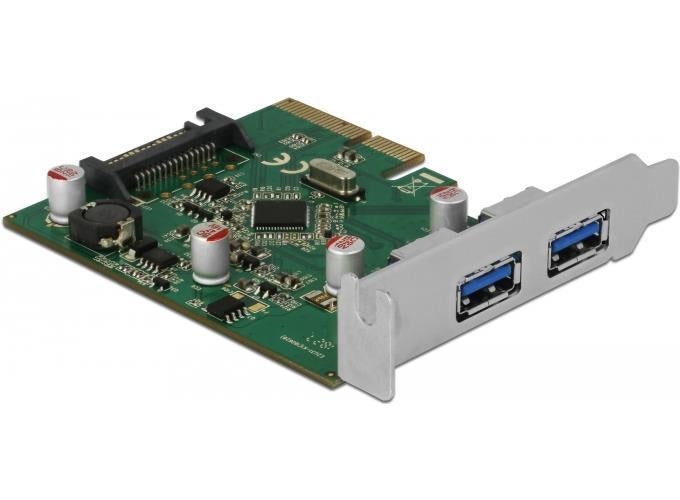

The Delock PCI Express x4 Card to 2 x External USB 3.1 Gen 2 Type-A Socket (model 90298) adds two external USB 3.1 Gen 2 Type-A ports to a desktop PC. Powered by the Asmedia ASM3142 chipset, it supports up to 10 Gbps transfer speeds, backward compatibility with USB 3.0/2.0/1.1, and installs in a PCI Express 3.0 x4 slot. The card includes a SATA 15-pin power connector, low-profile bracket, LED activity indicators, and supports Windows 7/8/8.1/10 and Linux Kernel 4.6 or later.
Key Features
- PCI Express x4 interface
- 2 × external USB 3.1 Gen 2 Type-A ports
- Asmedia ASM3142 chipset
- Up to 10 Gbps transfer speed
- Backward compatible with USB 3.0/2.0/1.1
- SATA 15-pin power connector
- Low-profile bracket included
- LED activity indicator
- Compatible with Windows 7, 8, 8.1, 10 and Linux Kernel 4.6+
Specifications
Brand: Delock
Model Number: 90298
Product Type: PCI Express USB expansion card
Color: Green
Chipset: Asmedia ASM3142
Interface: PCI Express x4
Pci Express Version: 3.0
Usb Standard: USB 3.1 Gen 2
Number Of Usb Ports: 2
Usb Connector Type: USB Type-A female
Maximum Data Transfer Rate: 10 Gbps
Backward Compatible: USB 3.0, USB 2.0, USB 1.1
Power Connector: SATA 15-pin
Plug And Play: true
Low Profile Bracket Included: true
Led Activity Indicator: true
Supported Operating Systems: Windows 7, Windows 8, Windows 8.1, Windows 10, Linux Kernel 4.6 or later
Width (mm): 80
Height (mm): 60
Depth (mm): 20
Weight (g): 60
Certifications: CE, RoHS
€89,87
