Description

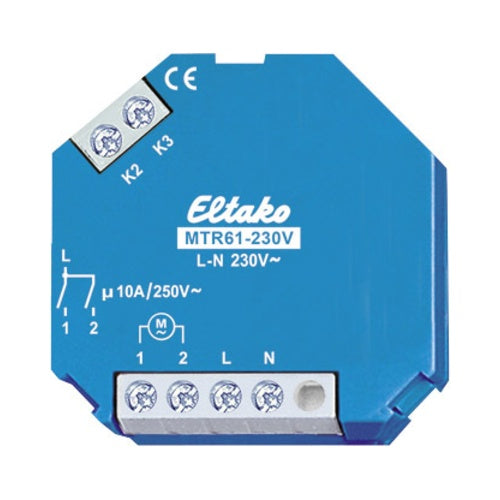

The ELTAKO MTR61-230V motor separation relay offers non-equipotential switching control for 230 V AC motors. It integrates 2+2 normally open contacts rated at 5 A/250 V AC alongside a potential-free 1+1 NO contact rated at 10 A/250 V AC. With only 0.4 W standby consumption, it is suited for panel mounting in compact installations. Encased in a blue housing, its hybrid electronic-relay design combines wear-free control with high switching capacity.
Key Features
- 230 V AC control and supply voltage
- 2+2 NO non-equipotential contacts
- 5 A/250 V AC contact rating
- Potential-free 1+1 NO contact
- 10 A/250 V AC rating
- Standby power consumption 0.4 W
Specifications
Brand: ELTAKO
Model Number: MTR61-230V
Product Type: motor separation relay
Color: Blue
Height (mm): 45
Width (mm): 45
Depth (mm): 32
Power Source: 230 V AC
Standby Power W: 0.4
Contact Configuration: 2+2 NO non-equipotential; 1+1 NO potential-free
Technology: hybrid electronic-relay
€112,31
