Description

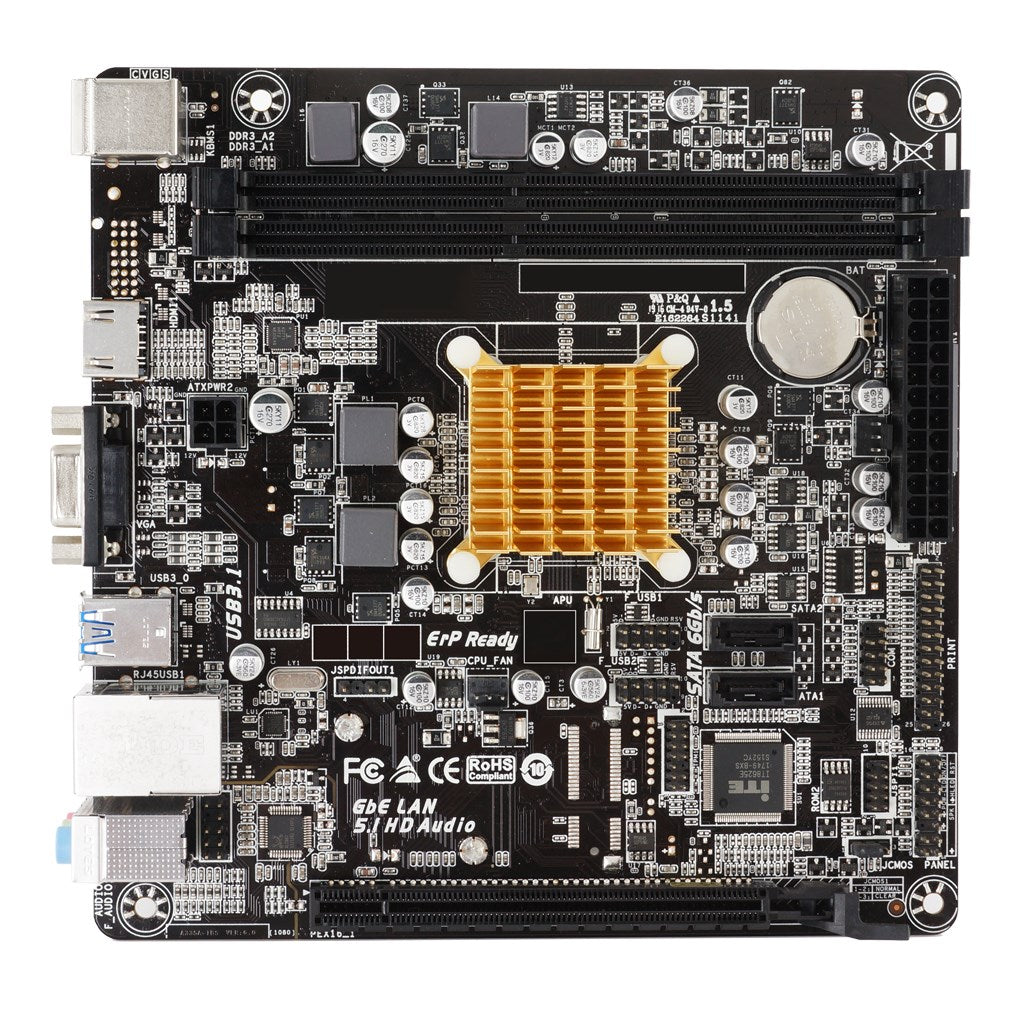

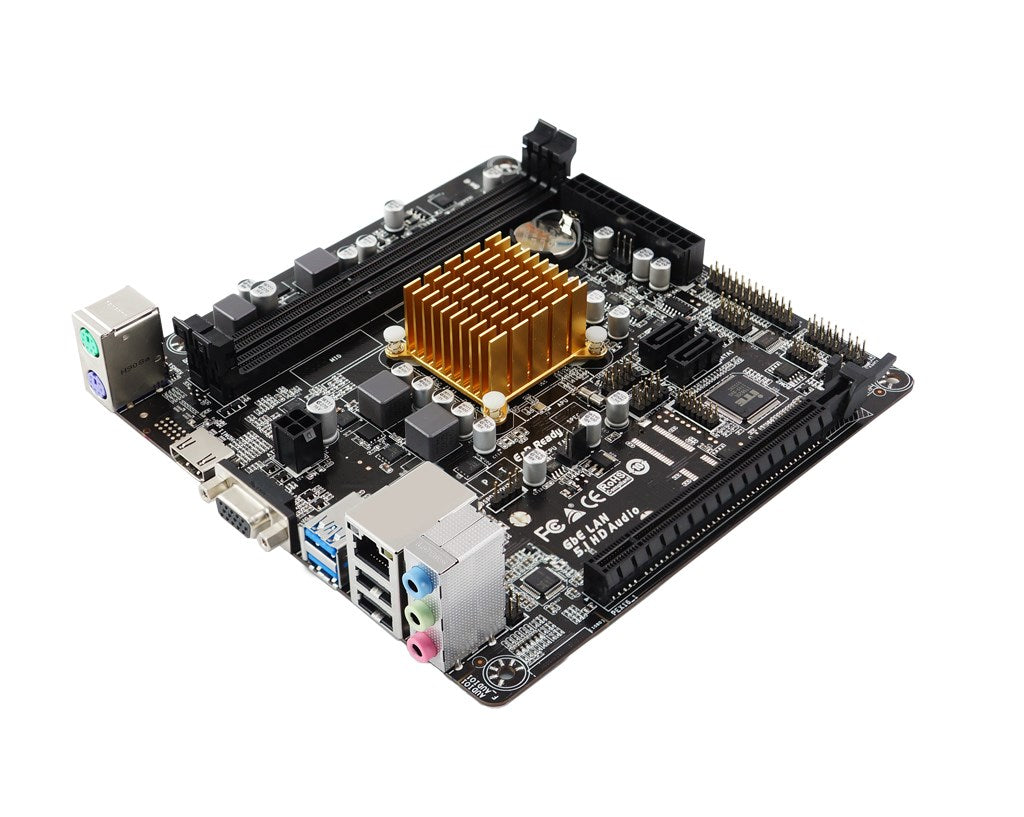

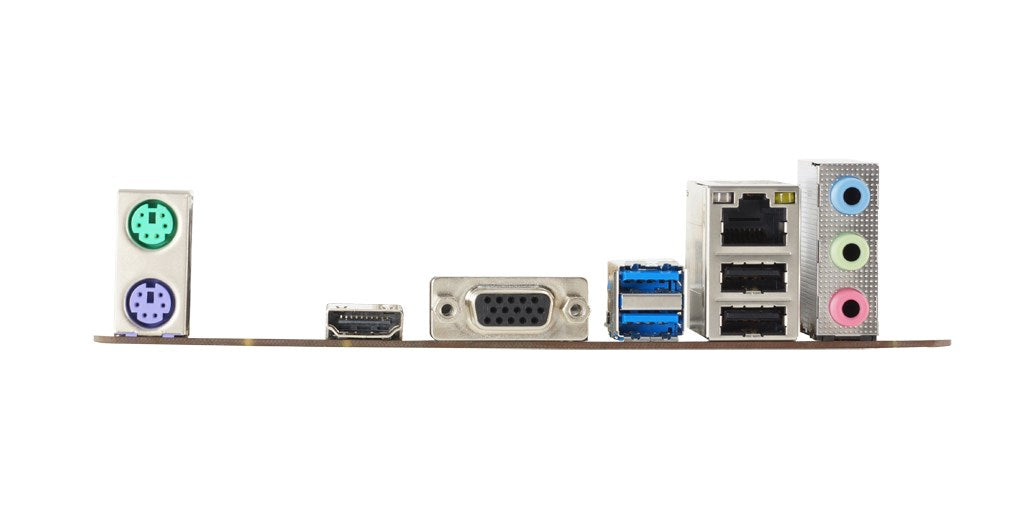

The BIOSTASIA A68N-2100K is a Mini-ITX motherboard measuring 170 × 170 mm and built on the AMD Beema chipset. It integrates an AMD E1-6010 dual-core 1.35 GHz processor and supports single-channel DDR3 and DDR3L memory up to 16 GB across two DIMM slots. Expansion options include one PCIe 2.0 x16 slot, while storage is handled by two SATA III 6 Gbit/s ports with AHCI support. Connectivity features Realtek RTL8111H Gigabit LAN, Realtek ALC887 7.1-channel HD audio with S/PDIF output, two USB 3.2 Gen1 ports, two USB 2.0 ports, HDMI, VGA, PS/2, COM, front-panel headers and TPM, along with 4-pin and 24-pin ATX power connectors and two fan headers.
Key Features
- AMD E1-6010 dual-core 1.35 GHz processor
- 2 × DDR3/DDR3L DIMM slots (up to 16 GB)
- 1 × PCIe 2.0 x16 slot
- Integrated AMD Radeon R2 graphics with HDCP
- 2 × SATA III 6 Gbit/s ports with AHCI
- Realtek RTL8111H Gigabit LAN and Realtek ALC887 7.1 audio
Specifications
Brand: BIOSTASIA
Model Number: A68N-2100K
Product Type: Motherboard
Chipset: AMD Beema
Integrated Cpu: AMD E1-6010
Cpu Clock Speed Ghz: 1.35
Memory Type: DDR3/DDR3L
Memory Slots: 2
Max Memory Gb: 16
Expansion Slot Type: PCIe 2.0 x16
Onboard Graphics: AMD Radeon R2
Hdcp Supported: true
Sata Ports: 2
Lan Controller: Realtek RTL8111H
Audio Codec: Realtek ALC887
Audio Channels: 7.1
Usb 3 Ports: 2
Usb 2 Ports: 2
Hdmi Ports: 1
Vga Ports: 1
Ps2 Ports: 2
Lan Ports: 1
Width (mm): 170
Depth (mm): 170
Form Factor: Mini-ITX
Supported Os: Windows 7 (x64), Windows 8.1 (x64), Windows 10 (x64)
€83,55
