Description

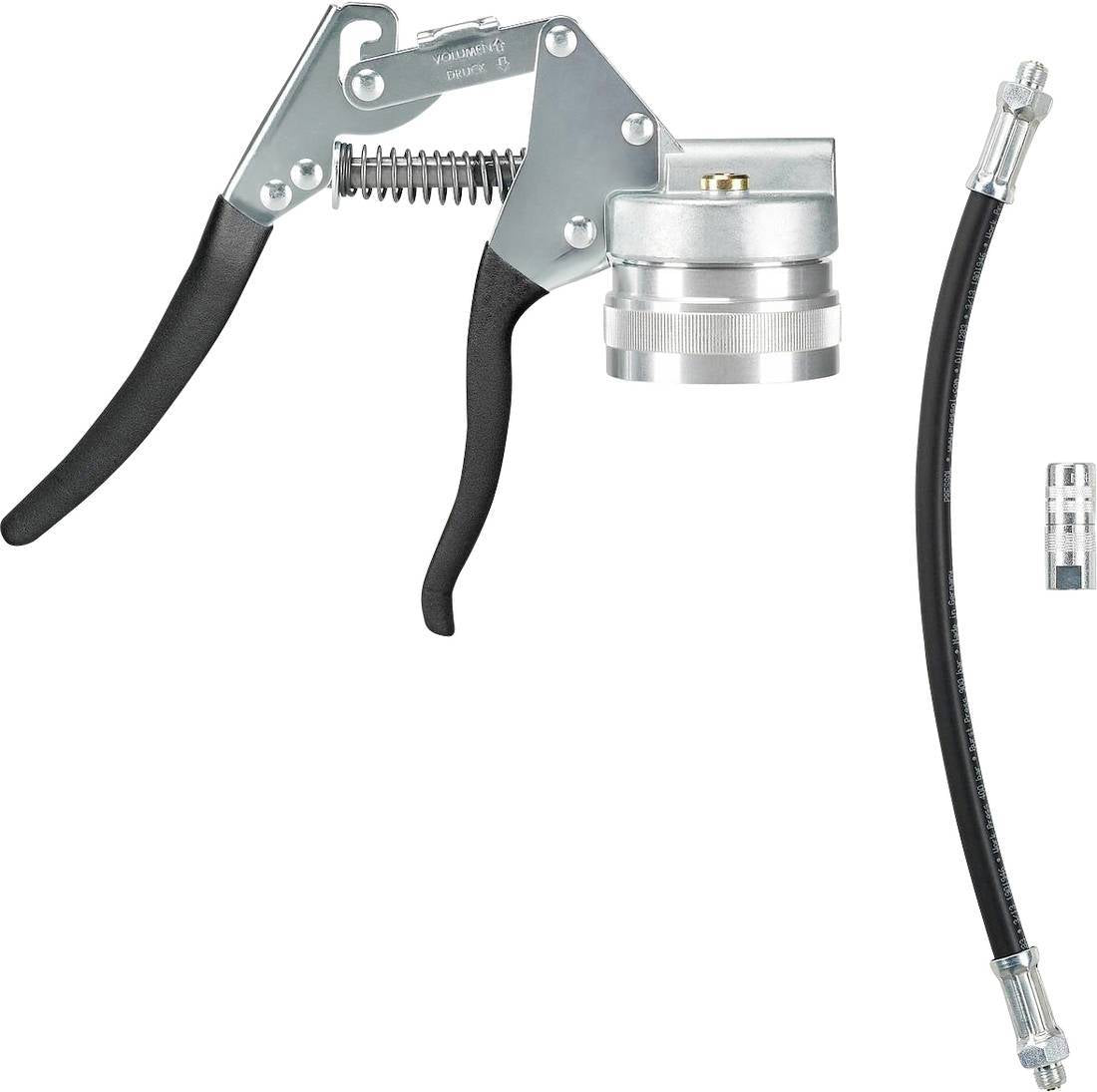

The PRESSOL EHFP-M 10 x 1-PZ-MU 12845 is a one-handed mechanical grease gun designed for NLGI 2 greases at up to 20 °C. It features a galvanised metal body with a die-cast zinc press head, a high-pressure hose with M10 x 1 connection and a 4 BA precision tip, and includes an adapter for 500 g screw cartridges. The adjustable handle allows selection between a high-volume stroke of 1.1 cm³ and a high-pressure stroke of 0.7 cm³, delivering up to 300 bar working pressure and a maximum discharge pressure of 200 bar.
Key Features
- 1.1 cm³ displacement per stroke
- 0.7 cm³ high-pressure stroke
- Max working pressure 300 bar
- Galvanised steel construction
- Includes adapter for 500 g screw cartridges
- High-pressure hose with M10 x 1 connection
Specifications
Brand: PRESSOL
Model Number: EHFP-M 10 x 1-PZ-MU 12845
Product Type: Grease gun
Material: Metal (galvanized)
Weight (g): 770
Height (mm): 180
Width (mm): 66
Length (mm): 230
Hose Length Mm: 300
Cartridge Capacity G: 500
Displacement Per Stroke Cm3: 1.1
High Pressure Stroke Cm3: 0.7
Working Pressure Bar: 300
Max Discharge Pressure Bar: 200
Operation Type: mechanical
Grease Port Thread: M10x1
Nozzle Type: 4 BA precision tip
€107,10
