Description

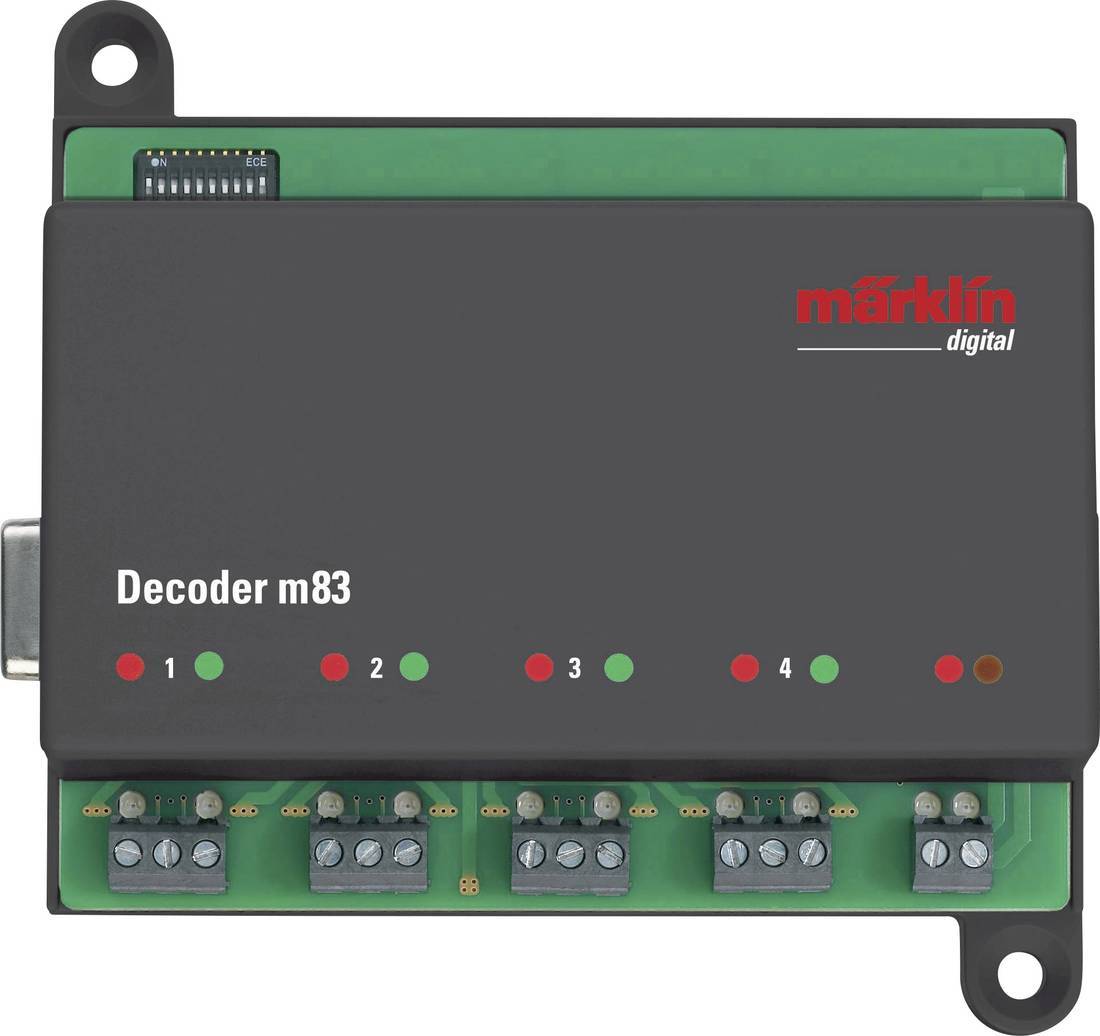

The Generic m83 mfx decoder for HO scale (1:87) controls turnouts, signals and uncoupling tracks using Motorola, DCC and mfx formats. Addressing is set via DIP switches or a programming track, supporting up to 320 addresses in Motorola mode and 2040 in DCC. Eight outputs operate independently or in paired default configuration for four turnouts, plus up to eight dimmable lighting points with custom sequences. Lever terminals and status LEDs simplify wiring and diagnostics, and the unit supports external power via modules 66360 and 60822 with a maximum load of 3 A.
Key Features
- Supports Motorola, DCC and mfx formats
- DIP switch or programming track addressing
- 8 outputs configurable individually or in pairs
- Up to 8 dimmable lighting points
- Stackable with m84 module
- Maximum load 3 A
Specifications
Brand: Generic
Product Type: Decoder
Scale: 1:87
Compatibility: Motorola, DCC, mfx
Address Mode: DIP switches or programming track
Max Addresses Motorola: 320
Max Addresses Dcc: 2040
Outputs Count: 8
Default Turnout Pairs: 4
Lighting Points: 8
Dimmable Lighting: true
Stacking Module: m84
External Power Supply: 66360 + 60822
Terminal Type: lever terminals
LED Indicators: true
Max Load A: 3
€124,91
