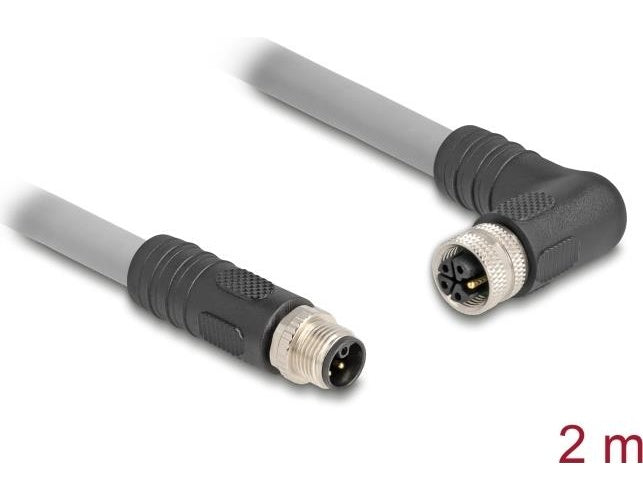

This M12 sensor cable from Delock is used for DC applications. The L-coded version has 5 current contacts with a nominal current of 16 A at 63 V, which can be used to reliably transmit currents. It can supply fieldbus components, power supplies, industrial machines, and motors where high current and low voltage are required. Technical data: - Connections: 1 x M12 5-pin L-coded plug, straight, 1 x M12 5-pin L-coded socket, angled - Copper cable - Shielded - Wire cross-section: 14 AWG (2.5 mm2) - Rated current: 16 A / 63 V - Key width: SW13 - Cable diameter: approx. 10.4 mm - Cable sheath material: PUR - Suitable for drag chains - Drag chain speed: up to max. 5 m/s - Tightening torque: 0.6 Nm - Bending radius (fixed): 5 x outer diameter - Bending radius (moving): 10 x outer diameter - Maximum number of bending cycles: 5,000,000 - Maximum number of torsional cycles: 500,000 - Torsional stress: 180 °/m - Operating temperature (fixed): -40 °C to 80 °C - Operating temperature (moving): -25 °C to 75 °C - Flammability class: UL94HB - Halogen-free, silicone-free, oil-resistant - Protection class: IP66 / IP67 - Thread material: die-cast zinc - Colour: grey - Length including connections: approx. 2 m Package contents: - M12 cable Packaging: - Resealable bag.
€121,13
