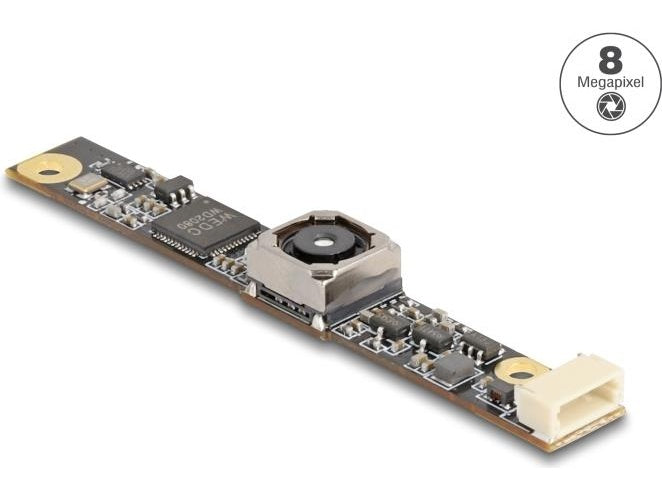

This USB 2.0 camera module from Delock offers high resolution and low power consumption in a very compact design. It is ideal for installation in industrial components such as IPCs, embedded systems, sensors, and device manufacturing. The use of a light-sensitive sensor with backlight illumination (BSI) expands the module's range of applications. Note: This camera module's autofocus can be disabled and customized. Specifications: - Connection: 1 x USB 2.0 5-pin SMT connector, 1.00 mm pitch - Resolution: 8.0 megapixel - With optical IR filter - Power consumption: Active sensor: 110 mA 5 mA 640 x 480 pixels - Operating voltage: 5 V DC - Operating temperature: 5 °C 50 °C - Operating humidity: 20 80 % - Sensor size: 1/3.2" - Sensitivity: 0.6 V / lx s - Signal-to-noise ratio (SNR): approx. 36 dB - Dynamic range: 68 dB - Autofocus: 0.2 m - infinity - Aperture value: F/2.8 - Frame rate: - 320 x 240 30 Hz - 352 x 288 30 Hz - 640 x 480 30 Hz - 900 x 600 30 Hz - 1280 x 720 30 Hz - 1600 x 1200 30 Hz - 1920 x 1080 30 Hz - 2048 x 1536 20 Hz - 2560 x 1440 30 Hz - 2592 x 1944 20 Hz - 3264 x 1836 15 Hz - 3264 x 2448 15 Hz - Dimensions (WxDxH): approx. 60.0 x 9.0 x 5.8 mm System requirements: - Android 11.0 or higher - Chrome OS - Linux Kernel 5.15 or higher - Mac OS 12.4 or higher - Windows 10/10-64/11 Package contents: - Camera module - CD with operating instructions.
€121,33
