Description

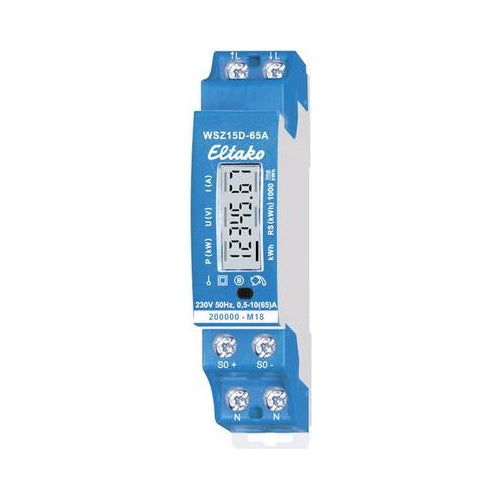

The Eltako WSZ15D-65A MID is a DIN-rail mount digital single-phase electricity meter certified under MID for billing and cost allocation. It uses direct measurement to monitor active energy at up to 65 A, with a starting current of 20 mA and a class B accuracy rating. A backlit LCD displays total and resettable energy, power, voltage and current, while an S0 pulse output generates 1,000 pulses per kWh. Housed in an 18 mm module with IP20 protection, it retains data during power loss.
Key Features
- MID-certified single-phase energy meter
- Rated current 10 A, max 65 A
- Class B accuracy
- S0 pulse output (1,000 pulses/kWh)
- Backlit LCD display
- IP20 protection
Specifications
Brand: Eltako
Model Number: WSZ15D-65A MID
Product Type: Digital single-phase electricity meter
Measurement Method: Direct measurement
Rated Current A: 10
Maximum Current A: 65
Starting Current Ma: 20
Rated Voltage V: 230
Frequency Hz: 50
Energy Type: Active energy
Accuracy Class: Class B
Certification: MID approved and calibrated
Suitable For Billing: true
Tariff Type: Single tariff
Reverse Running Prevention: true
Display Type: Digital LCD with backlight
Displayed Values: Total energy, resettable energy, active power, voltage, current
Pulse Output: S0
Pulse Indication Per Kwh: 1000
Internal Power Consumption W: 0.4
Data Retention: Values retained during power loss
Mounting: 35 mm DIN rail, EN 60715 TH35
Width (mm): 18
Height (mm): 82
Depth (mm): 58
IP Rating: IP20
Manufacturer Part Number: 28065615
€103,54
