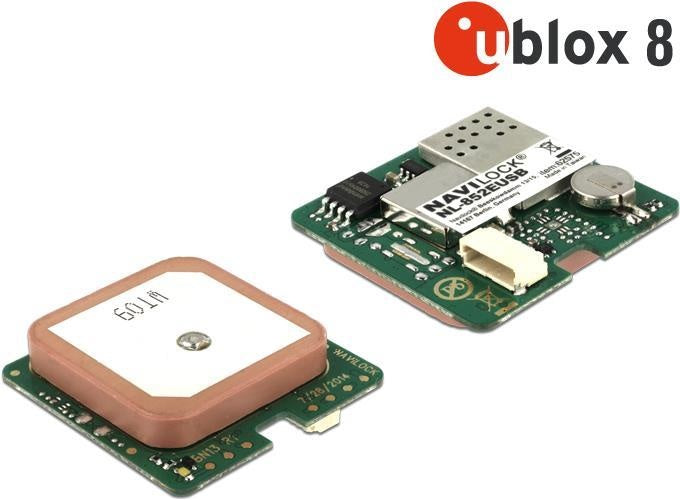

GNSS modules are fully assembled receivers with patch antenna, backup battery, etc. This version uses USB. Connection: WTB USB u-blox 8 UBX-M8030-KT Chipset Frequencies: GPS: L1, 1575.4200 MHz GLONASS: L1, 1602 (kx 0.5625) MHz BEIDOU COMPASS: B1, 1561.0980 MHz GALILEO E1, 1575.4200 MHz QZSS L1, 1575.4200 MHz Processes signals from up to 72 satellites simultaneously Supports AssistNow online/offline, SBAS (WAAS, EGNOS, QZSS and MSAS) Supports NMEA 0183 Protocols: GGA, GSA, GSV, RMC, VTG Auto Baud Rate up to 115200 bps PPS signal on pin 6 Update Rate: single GNSS: 18 Hz (e.g. GPS solo) multiple GNSS: 10 Hz (e.g. B. GPS+GLONASS) Maximum sensitivity: -167 dBm LED indicator for GPS status Operating temperature: -40°C to 85°C without battery, 20°C to 60°C with battery Power supply: 5 V DC Current consumption: max. 45 mA Cold start in approx. 26 seconds Hot start in approx. 1 second Position accuracy: 2.5 m CEP (Circular Error Probable) and 2 m CEP with SBAS Dimensions (L x W x H): approx. 30 x 30 x 7.9 mm.
€121,29
