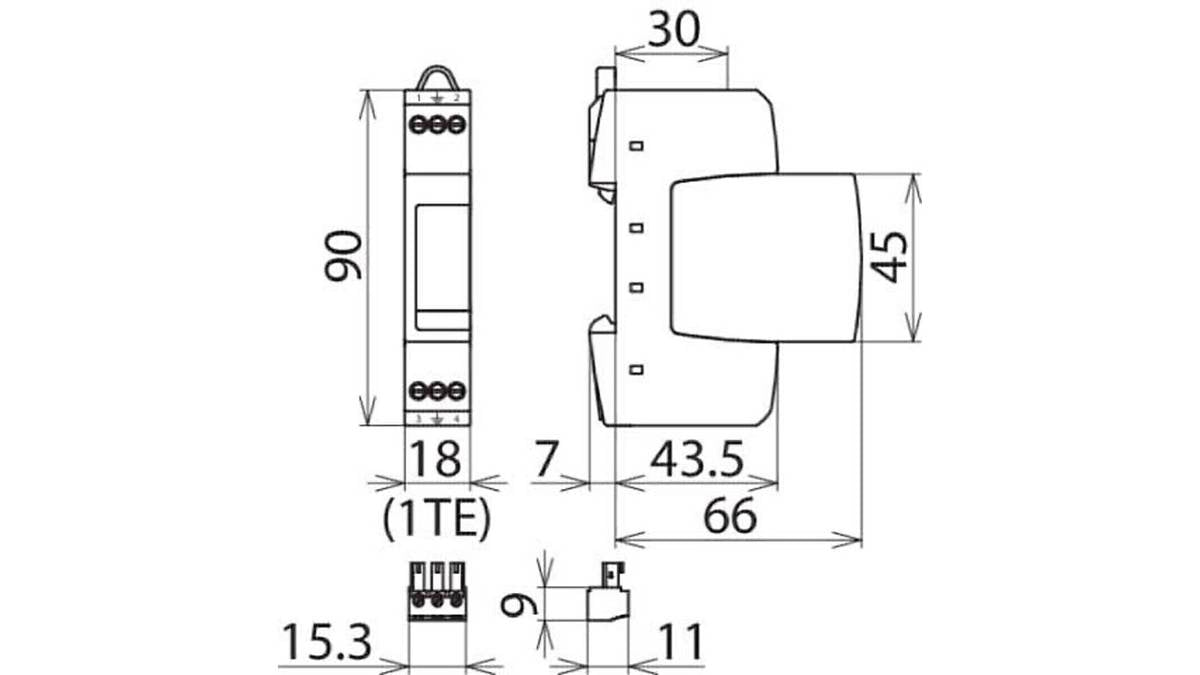

Two-pole surge arrester consisting of a base element and a plug-in protection module, with a potential-free remote signaling contact. Two-pole surge arrester consisting of a base element and a plug-in protection module. High discharge capacity thanks to a high-performance zinc oxide varistor/spark gap combination. Energy coordinated within the Red/Line product family. Function/defect indicator via green/red marking in the viewing window. Slim design (modular construction) according to DIN 43880. Easy, tool-free protection module replacement thanks to a module locking system with module release button. Vibration and shock tested according to EN 60068-2. Key features: Energy AC plug types Terminal Nominal input voltage 230 AC Input frequency 50/60 Hz Peak current - Normal mode 5000 A Connections and interfaces Wireless Yes Technical details Response time 0.000025 ms Number of products included 1 piece Overcurrent protection Yes Color Product color Red Weight & dimensions Weight 84 g Width 18 mm Depth 73 mm Height 90 mm Operating conditions.
€119,42
