Description

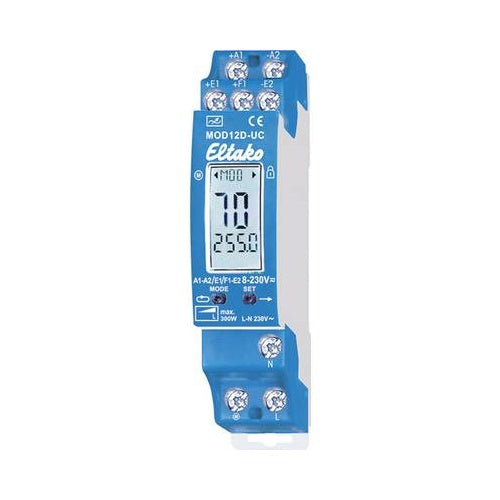

The Eltako 21100906 is a digital fan motor dimmer that regulates AC motor speed via phase cut switching for loads up to 300 watts. It features adjustable minimum and maximum speeds and a configurable ramp-up rate, all accessible via MODE and SET keys on the built-in LCD display. Control inputs are galvanically isolated from the switching and supply circuits, supporting zero-cross switching and high-speed startup. The unit consumes just 0.3 watt in standby, retains its last speed setting after a power failure, and includes automatic overload and overtemperature protection.
Key Features
- 230 V operating voltage
- 300 W maximum load
- 0.3 W standby consumption
- Adjustable minimum and maximum speeds
- Galvanically isolated control inputs
- Built-in LCD display with MODE and SET buttons
Specifications
Brand: ELTAKO
Model Number: 21100906
Color: Blue
Height (mm): 66
Width (mm): 58
Length (mm): 18
Power (W): 300
Operating Voltage V: 230
Standby Power W: 0.3
Galvanically Isolated Inputs: true
Zero Cross Switching: true
Memory Function: true
Display Type: LCD
€116,43
