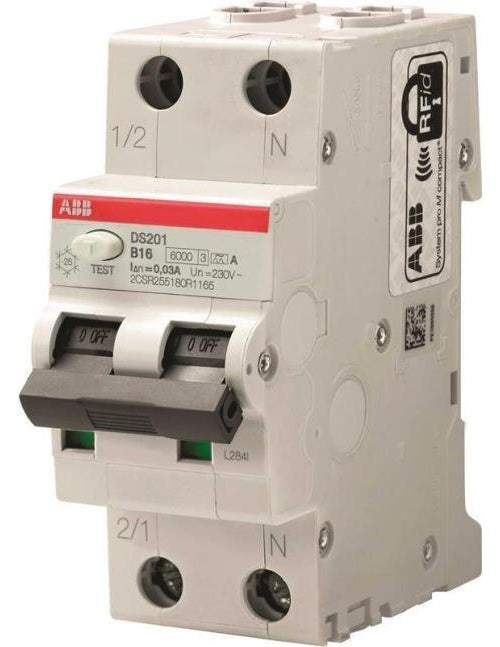

Introducing the ABB DS201 B10 A30 FI/LS-Schalter 6kA, a compact residual-current circuit breaker designed for 1P+N circuits. It delivers reliable leakage protection with 30 mA sensitivity and robust short-circuit capacity, making it ideal for modern electrical panels and distribution boards.
Key Features & Design
- Brand: ABB
- Configuration: 1P+N (one pole plus neutral)
- Protection: FI/LS-Schalter (residual current device with overcurrent protection)
- Tripping sensitivity: 30 mA
- Breaking capacity: 6 kA
- Type: Typ A
- Rated current: B10 (10 A)
- Part number: 2CSR255180R1105
Performance / Benefits
This ABB DS201 device enhances electrical safety by quickly disconnecting the circuit in the event of leakage currents, reducing the risk of electric shock and protecting connected equipment. With a 6 kA breaking capacity, it provides reliable fault handling for typical distribution scenarios, while the 30 mA residual current rating offers precise protection for sensitive loads. The Typ A designation enables effective detection of AC and pulsating DC leakage, delivering comprehensive protection in modern electrical installations. Ideal for residential or commercial panel upgrades, this part ensures dependable safety and compliance with electrical standards.
