Description

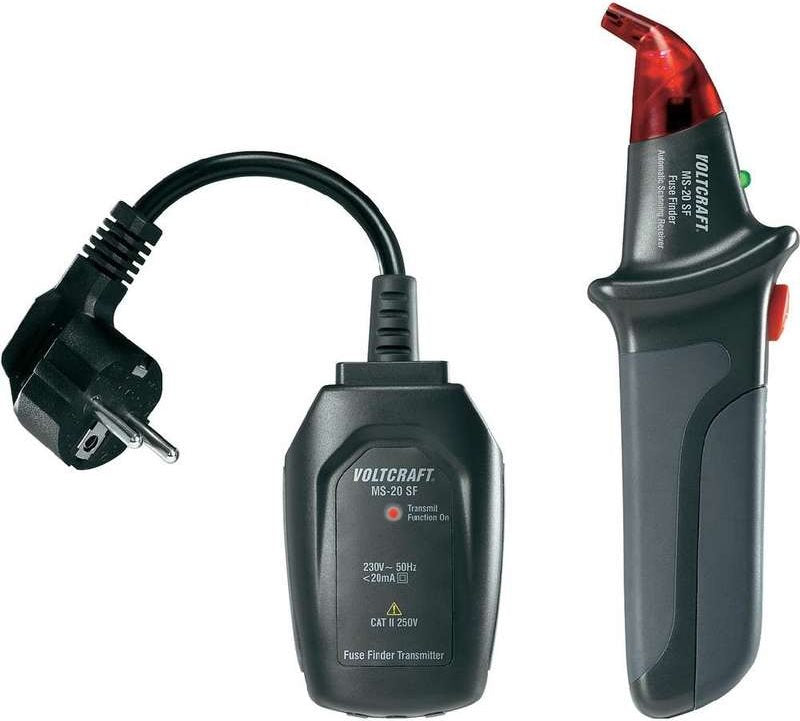

The VOLTCRAFT MS-20SF is a fuse detector set comprising an AC-powered transmitter and a battery-powered receiver for non-contact identification of live fuses in electrical panels. The transmitter plugs into a 230 V AC outlet to inject a coded signal, while the handheld receiver uses a 9 V block battery to detect and indicate the corresponding fuse. Audible and visual alarms guide the user to the correct fuse location. The unit meets CAT II 250 V safety standards and weighs 218 g.
Key Features
- Transmitter powered by 230 V AC
- Receiver powered by 9 V block battery
- Audible and visual signals
- Non-contact fuse identification
- CAT II 250 V safety rating
- 20 mA receiver current draw
Specifications
Brand: VOLTCRAFT
Model Number: MS-20SF
Product Type: Fuse detector set
Batteries Included: true
Battery Type: 9 V block
Power Source Emitter: 230 V AC
Power Source Receiver: 9 V
Current Consumption Ma: 20
Protection Level: CAT II 250 V
Weight (g): 218
Acoustic Indicator: true
Optical Indicator: true
€123,37
