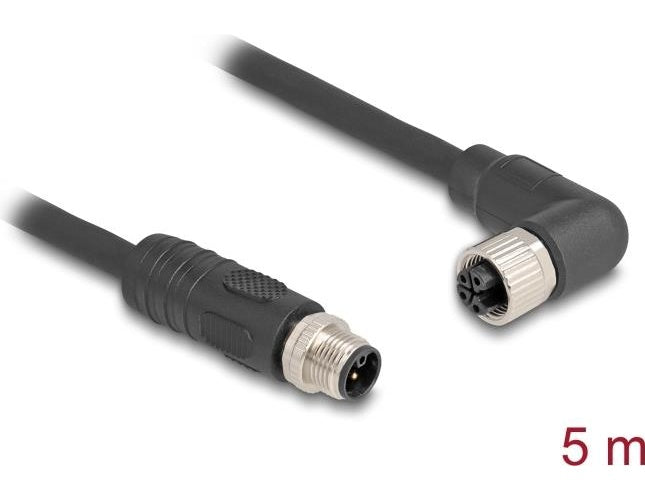

This M12 sensor cable from Delock is used for DC applications. The L-coded version has 4 current contacts with a nominal current of 12 A at 63 V, which can be used to reliably transmit currents. It can be used to power fieldbus components, power supplies, industrial machines and motors, for example, wherever high current and low voltage are required. Technical data - Connection 1: 1 x M12 4-pin L-coded plug - Connection 2: 1 x M12 4-pin L-coded socket, angled - Copper cable - Unshielded - Wire cross-section: 16 AWG (1.5 mm2) - Rated current: 12 A / 63 V - Spanner size: SW13 - Cable diameter: approx. 7.2 mm - Cable sheath material: PUR - Suitable for drag chains - Drag chain speed: up to max. 5 m/s - Tightening torque: 0.6 Nm - Bending radius (fixed): 5 x outer diameter - Bending radius (moving): 10 x outer diameter - Maximum number of bending cycles: 5,000,000 - Maximum number of torsional cycles: 500,000 - Torsional stress: 180 °/m - Operating temperature (fixed): -40 °C to 80 °C - Operating temperature (moving): -25 °C to 70 °C - Flammability class: UL94HB - Halogen-free, silicone-free, oil-resistant - Protection class: IP66 / IP67 - Thread material: die-cast zinc - Colour: black - Length including connections: approx. 5 m.
€138,40
