Description

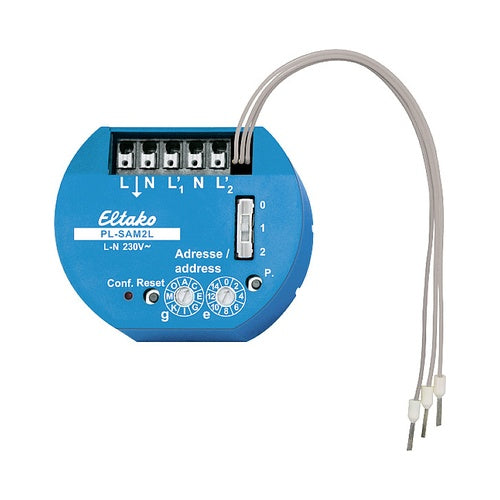

The ELTAKO PL-SAM2L is a decentralized Powerline actuator with two channels and integrated sensor inputs for combined control and switching at a single location. Its compact housing of 53×43×25 mm fits into standard 58 mm control boxes, offering 1+1 potential-free NO contacts rated at 5 A/250 V AC and a switching capacity up to 1000 W. Two rotary switches and a slide switch provide address and configuration settings, while a red LED indicates activity. Standby power loss is only 0.5 W, and plug-in terminals support conductors from 0.2 mm² to 1.5 mm².
Key Features
- 2-channel Powerline actuator
- 1+1 NO contacts 5 A/250 V AC
- Switching capacity 1000 W
- Standby loss 0.5 W
- Dimensions 53×43×25 mm
- Flush-mounted installation
Specifications
Brand: ELTAKO
Model Number: PL-SAM2L
Height (mm): 53
Width (mm): 43
Depth (mm): 25
Power (W): 1000
Max Switching Current A: 5
Standby Power Loss W: 0.5
Type Of Mount: flush-mounted
Series: Eltako
Station Base Required: false
€147,45
