Description

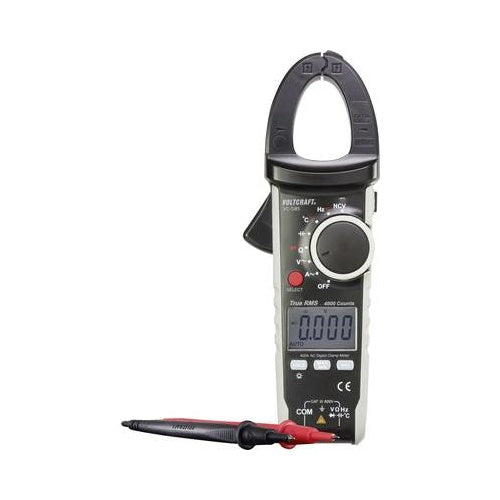

The VOLTCRAFT VC585 is a TrueRMS digital clamp meter rated CAT III 600 V with factory calibration. Its ergonomic body features a soft injected rubber housing for one-handed operation, and a 4000-count display with switchable backlight. The 30 mm jaw enables AC current measurement up to 400 A without circuit interruption, while non-contact voltage detection up to 600 V simplifies live-wire checks. Standard functions include AC/DC voltage, resistance, capacitance, frequency, duty cycle, temperature measurement, diode test, and continuity test.
Key Features
- True RMS measurement
- CAT III 600 V rating
- 4000-count display
- 30 mm jaw opening
- Non-contact voltage detection
- Ergonomic soft-rubber housing
Specifications
Brand: VOLTCRAFT
Model Number: VC585
Product Type: clamp meter
Power Source: battery
Battery Count: 3
Batteries Included: true
Weight (g): 265
Height (mm): 228
Width (mm): 77
Length (mm): 41
Display Count: 4000
Basic Accuracy: ±1%
Jaw Capacity Mm: 30
Detection Category: CAT III 600 V
Non Contact Voltage Detection: true
Measurement Frequency Range Hz: 10–1000000
Temperature Range C: -40 to +230
€134,66
