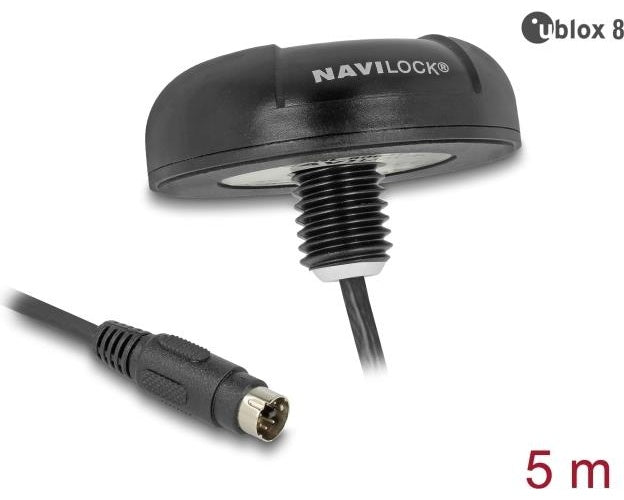

The MD6 Multi GNSS serial receiver with the u-blox 8 chipset features a built-in active antenna. Navigation is possible when combined with a laptop and the appropriate navigation software. The MD6 universal interface allows for the connection of optional USB or serial cables. The NL-803P GNSS receiver can be mounted on various vehicle roofs (cars, trucks, buses, etc.) using the supplied mounting hardware. Its compact design allows it to blend discreetly into the vehicle's design. Technical data - Connection: Navilock MD6 connector (USB or serial connection cable available as an option) - Chipset: u-blox 8 EVA-M8Q - Frequency: - GPS: L1, 1575.4200 MHz - GLONASS: L1, 1602 (kx 0.5625) MHz - BEIDOU COMPASS: B1, 1561.0980 MHz - GALILEO: E1, 1575.4200 MHz - QZSS: L1, 1575.4200 MHz - Processes signals from up to 72 satellites simultaneously - Supports AssistNow online/offline, SBAS (WAAS, EGNOS, QZSS and MSAS) - Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG - Auto Baud Rate up to 115200 bps - PPS signal on pin 6 (LVTTL 3.3V) - Update rate: - Single GNSS: 18 Hz (e.g. GPS only) - Multiple GNSS: 10 Hz (e.g. GPS+GLONASS) - Sensitivity: max. -164 dBm - Degree of protection: IPX7 - Operating temperature: -10 °C 50 °C - Power supply: 5 V DC - Power consumption: max. 45 mA - Cold start in approx. 26 seconds - Warm start in approx. 1 second - Position accuracy: 2.5 m CEP (Circular Error Probable) and 2 m CEP with SBAS - Cable length: approx. 5 m - Dimensions (Ø x H without thread): approx. 62 mm x 21 mm System requirements - Linux Kernel 5.19 or higher - Windows 10/10-64/11 - MD6 connection cable Package contents - Serial MD6 receiver - Fixing material: Stainless steel nut and washer Packaging - Box.
€153,38
