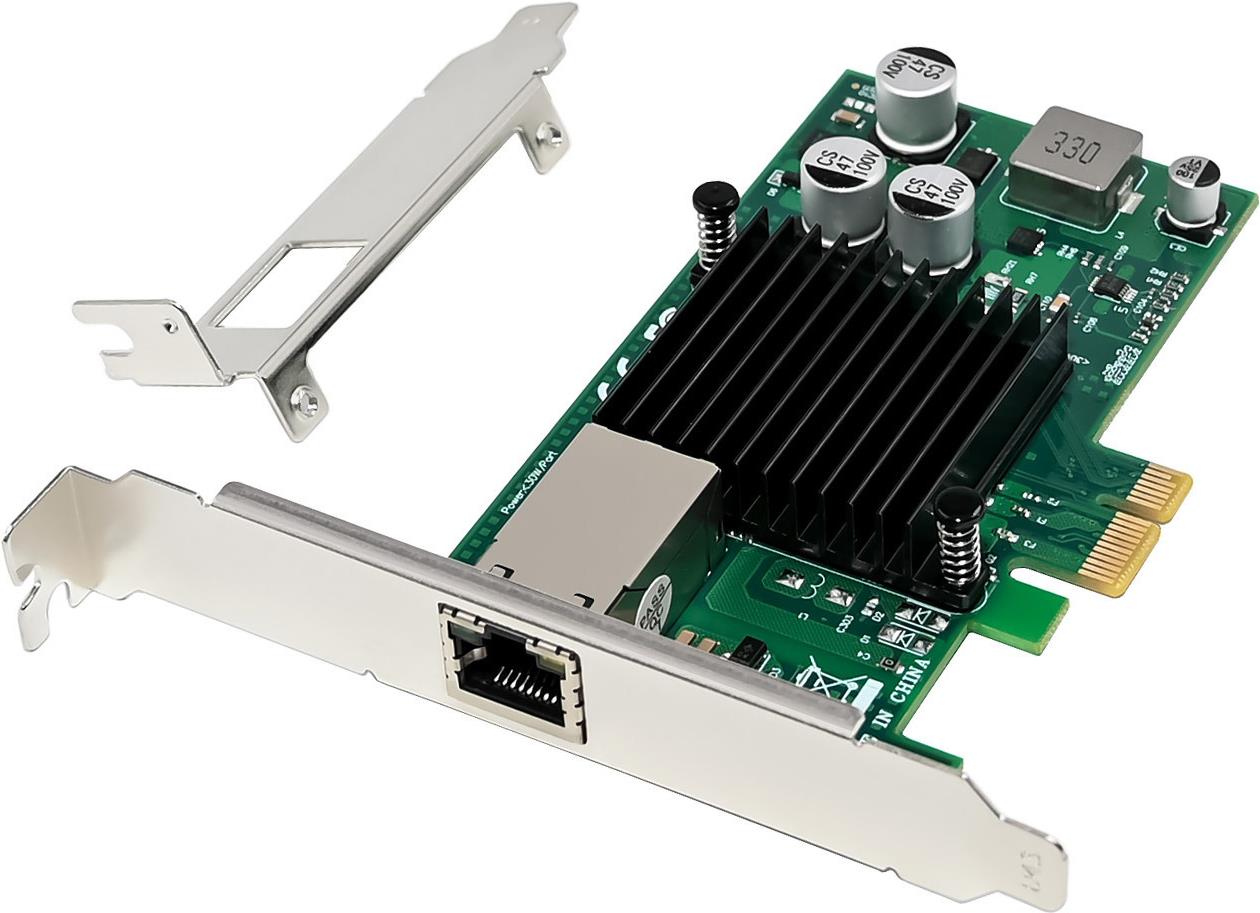

Gigabit Ethernet with PoE+ for a fast and reliable connection. 1x RJ45 port with 10/100/1000 Mb/s data rate. Supports Power over Ethernet Plus (PoE+) with up to 30 W power. Intel WGI210AT chipset for high performance and energy efficiency. PCIe x1 interface with standard and low-profile slot bracket. The InLine Gigabit network card PoE+ offers a powerful and versatile solution for professional use in servers, workstations and AV applications. With an RJ45 Gigabit interface, it enables a reliable 10/100/1000 Mbps Ethernet connection and supports modern network technologies for optimized performance and energy efficiency. Thanks to PoE+ (IEEE 802.3af/at) with up to 30 W, it is ideal for IP cameras, access points, and VoIP phones, which can be powered directly via the network cable without a separate power source. Additional features such as VLAN support (802.1Q), jumbo frames up to 9K, flow control (802.3x), and virtual machine device queues (VMDq) ensure optimized network performance and efficient use of system resources. Technical specifications: Bus type: PCIe v2.1 (5.0 GT/s) 1-lane connector: 1 x RJ45 (copper) Data rate: 10/100/1000 Mbps (Gigabit Ethernet) Maximum Cable length: 10BASE-T: Category 3 or higher (up to 100 m) 100BASE-TX: Category 5 or higher (up to 100 m) 1000BASE-T: Category 5e or higher (up to 100 m) Chipset: Intel WGI210AT Supported protocols: IPv4, IPv6, PoE+ (Power over Ethernet) Maximum power: 30 W Voltage range: 44-57 V DC Dimensions: 115 mm x 69 mm (PCIe board) Network & protocol support Supported IEEE standards: IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3x (Flow Control) IEEE 802.1Q (VLAN) IEEE 802.3af / 802.3at (PoE+) 802.1Qav (Audio-Video Bridging) IEEE 1588 & 802.1AS (Precise Time Synchronization) Features: Auto-Negotiation (10/100/1000 Mb/s) MDI/MDI-X (Automatic Crossover Detection) Receive-Side Scaling (RSS) Jumbo Frame Support (up to 9K) UDP/TCP & IP Checksum Offloading Virtual Machine Device Queues (VMDq, up to 8 VMs) Interrupt Throttling Control Operating System Support Windows: 11, 10, 8, 7 Windows Server: 2008 R2, 2016, 2019, 2021 Linux: from kernel version 2.6.30 Others: FreeBSD, virtualization environments (e.g., VMware ESXi) Environmental Conditions: Operating temperature: 0 °C to 55 °C Storage temperature: -40 °C to 70 °C Maximum humidity: 90% Package contents: 1x InLine Gigabit network card PoE+, 1x RJ45 1Gb/s 1x Low-profile slot bracket 1x Driver CD 1x User manual (German/English) - I/O cards / Front panel / Slot brackets I/O cards - InLine Gigabit network card, 1x RJ45 1 Gb/s, PCIe x1, PoE+.
€136,49
