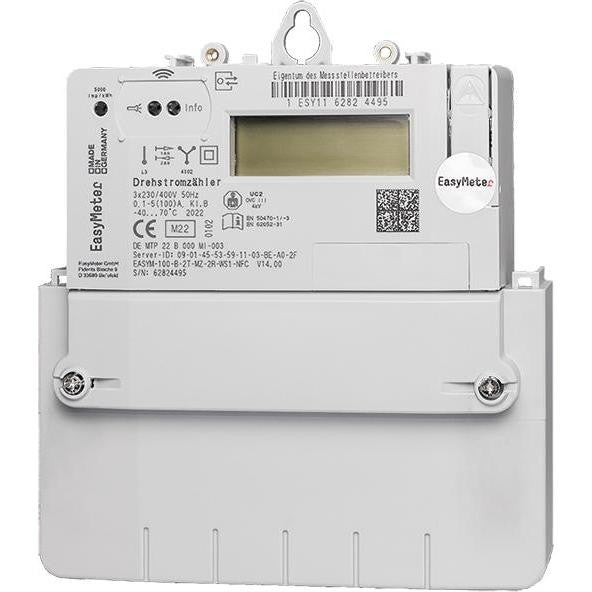

Three-phase electronic meter, also approved as an AC meter via phase L3. The EasyM100 is a compact three-phase, 4-wire active meter that can also be used as a single-phase, 2-wire (L3) meter. It has a current range of 0.1-5(100) A, universal terminals and a metal insert for a magnetic probe on the front. Features include: - 2 tariffs - Bidirectional supply and consumption - Assessed MID compliance - Cross-meter mounting - Two-line LC display compliant with FNN EDL specification V1.2 with 6 digits for energy display in kWh - Functionality compliant with FNN EDL specification V1.2 - Expandable to smart metering system - Suitable for photovoltaic systems - Sliding info line - Content partially configurable via MSB interface - Operation for end consumers via optical display and optical call button with PIN protection and tacho-zero setting - Instantaneous power (W) - Historical energy values (kWh) per day, week, month, year - Storage depth of more than two years - Bidirectional MSB interface (D0) - Protocol compliant with SML 1.04 - Transmission of meter identification, readings and all services every second (push telegram) - Unidirectional INFO interface - Expandable via plug-on modules as an extension to smart metering system according to MsbG - Interface NFC/RFID and additional functions Specifications: - Voltage (U): 3x230/400V (4-wire), 1x 230 V (2-wire) - Current (I): 0.1-5 (100) A - Frequency (f): 50 Hz - Accuracy (active): B - Power consumption of the voltage path: approx. 0.8 W (2.5 VA) per phase - Power consumption of the current path: approx. 0.005 W at 5 A, approx. 2 W at 100 A - Temperature range (Tb): -40 to +70° C - Protection class (housing): IP 51 - Weight: approx. 0.6 kg (without terminal cover) - Dimensions (W x H x D): approx. 177 x 198 x 51 mm.
€156,93
