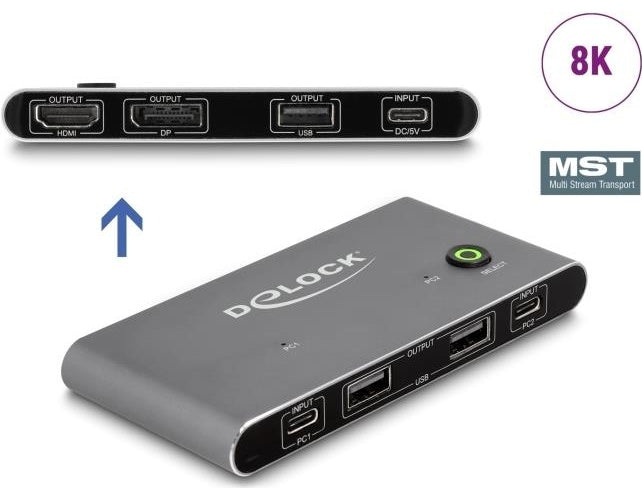

This KVM Switch from Delock is a practical solution for managing two computers with USB-C DP Alt Mode output on one HDMI monitor and one DisplayPort monitor. Two monitors can be used simultaneously on the outputs. Switching between computers is possible with the push of a button on the device. Peripheral Devices Additionally, you can connect a mouse, keyboard, or USB memory stick via three USB 2.0 ports. USB Power Supply: The device is powered via a USB port; a suitable USB cable is included. If a free USB-A port is not available, an optional external power supply is required. Multi-Stream Transport (MST) The product is a Multi-Stream Transport (MST) hub and supports DisplayPort extended desktop configuration. In Windows, connected monitors are controlled individually and can be combined into one large display. Specifications - Connections: Input: 2 x USB Type-C (DP Alt Mode) female 1 x USB Type-C female (5 V power supply) Output: 1 x HDMI-A female 1 x DisplayPort female 3 x USB 2.0 Type-A female - Switch button - LED indicator for source - Maximum resolution (depending on the system and connected hardware): 1 display: up to 7680 x 4320 30 Hz 2 displays: up to 3840 x 2160 60 Hz - Functions: Mirroring or Extending (Windows only) - Metal housing - Color: anthracite - Dimensions (W x D x H): approx. 115 x 54 x 12 mm System requirements - PC or notebook with a free USB Type-C port and DisplayPort Alt Mode or - PC or notebook with a free Thunderbolt 3 port - Monitor or TV with HDMI input - HDMI cable - Monitor or TV with DisplayPort input - DisplayPort cable - Power supply with a USB Type-A port free Package contents - KVM Switch with USB - 2 x USB-C male to USB-C male cables, length approx. 80 cm - USB-C male to USB Type-A male cable, length approx. 100 cm.
€165,48
