Description

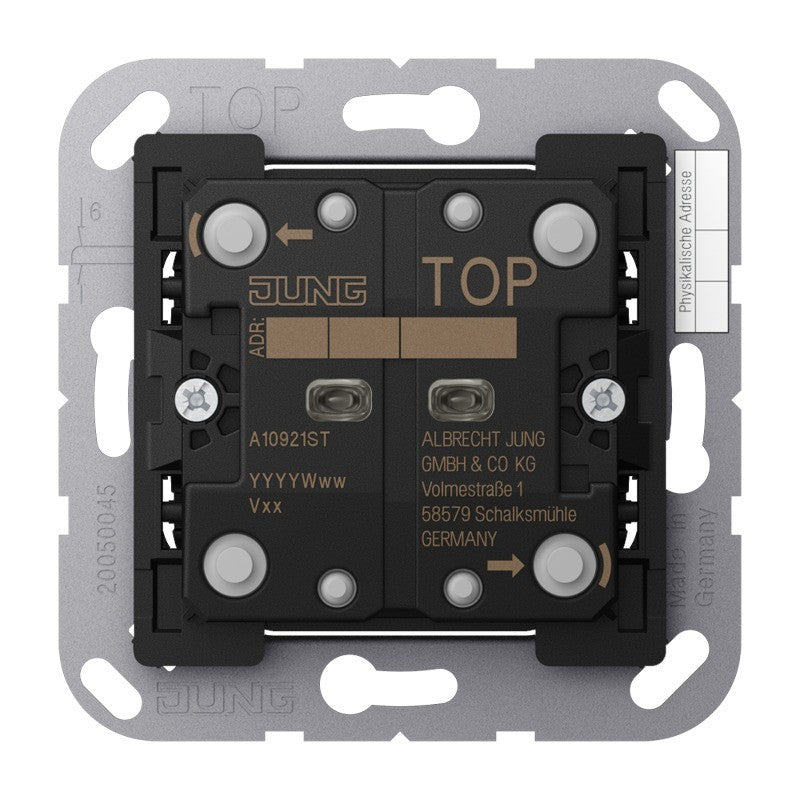

The JUNG A10921ST is a universal 2-gang KNX F10 push-button sensor module with four freely programmable operating points. It supports switching, dimming, blind and shutter control, value transmission and scene activation via an integrated KNX TP 256 bus coupling unit with KNX Secure. Configurable status LEDs in red, green or blue indicate each operating point, and an F10 extension or up to 20 external potential-free contacts can be connected. Its flush-mount design and IP20 rating suit standard installation boxes, while theft and removal protection safeguard settings.
Key Features
- 2-gang F10 push-button design
- Four programmable operating points
- Integrated KNX TP 256 coupling unit with KNX Secure
- Supports switching, dimming, blind and shutter control
- Configurable status LEDs per operating point
- Connects to one F10 extension or up to 20 external contacts
Specifications
Brand: JUNG
Model Number: A10921ST
Product Type: KNX push-button sensor module
Protection Features: IP20
Mounting Method: Flush-mounted
Protection Class: Class III
€162,44
