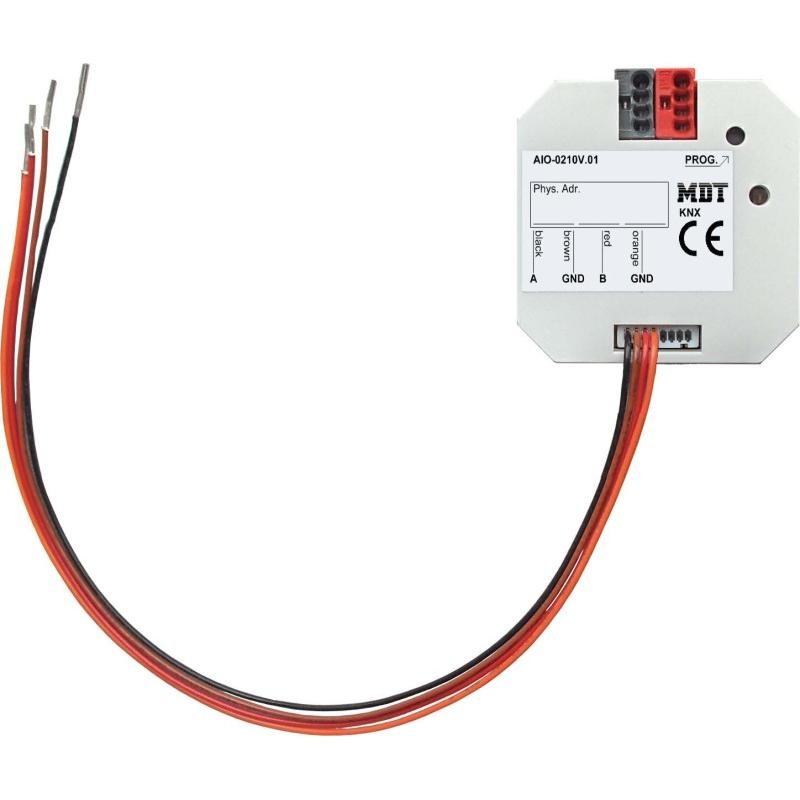

MDT technologies Switch actuator 2-fach AIO-0210V.01 Manufacturer: MDT technologies Description: Switch actuator 2-fach I/O UP, 0-10V Type: AIO-0210V.01 KNX bus system: yes KNX-Funk bus system: no Funkbus bus system: no LON bus system: no Powernet bus system: no Other bus systems: none Mounting type: Flush-mounted Minimum depth of the installation box: 35 mm Version: Basic module With LED indicator: no Number of inputs: 2 With bus coupling: yes Size of voltage input: yes Size of current input: yes Degree of protection (IP): IP20 MDT technologies Switch actuator 2-fach AIO-0210V.01: more details KNX Analog I/O 2-fach, UP, 0-10 V, switchable input/output. Suitable as an analog output for controlling ventilation systems and other devices with a 0-10 V input. Also suitable as an analog input for speed detection or other 0-10 V measurement data. Each channel can be configured independently (input/output). Inputs/outputs are galvanically isolated from the KNX bus. Inputs/outputs are galvanically connected to each other. The voltage for output operation is generated in the actuator. No external power supply is required. Input operation: Sensor type 0-10 V / 2-10 V or 0-20 mA / 2-20 mA (switchable), measured value scaling, adjustable data point types, min/max values, wire break detection, threshold function, step controller. Output operation: 0-10 V, adjustable data point type, control value setting via 1 bit / 1 byte / 2 bytes, blocking function, emergency operation, day/night function for limiting the control value. Installs in a switch box. Dimensions (H x W x D): 41 x 41 x 12 mm. Quick app download (long frame support from ETS 5). EAN: 4251916130008.
€169,39
