Description

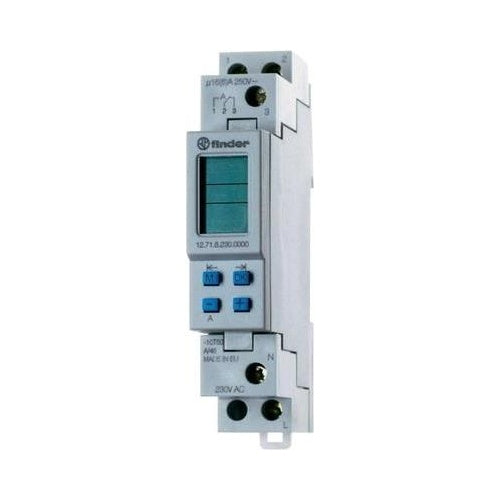

The FINDER 12.71.8.230.0000 is an electronic weekly timer switch from the Series 12 family. It handles AC1 loads up to 16 A at 250 V AC, accommodating incandescent and halogen lamps up to 2000 W as well as discharge lamps. Its plug-in programming module offers 30 switch events with grouping, external programming and built-in summer/winter time changeover. The timer features a 6-year power reserve, IP20 protection and compact dimensions of 17.6 mm width by 90 mm length.
Key Features
- 16 A AC1 switching capacity
- 30 programmable switching events
- Automatic summer/winter changeover
- 6-year power reserve
- Plug-in programming module
- IP20 protection
Specifications
Brand: FINDER
Model Number: 12.71.8.230.0000
Product Type: Weekly timer
Width (mm): 17.6
Length (mm): 90
IP Rating: IP20
Switching Current Ac1 A: 16
Rated Voltage Ac V: 250
Memory Positions: 30
Reserve Run Time Years: 6
Switching Interval Min: 1
€222,20
