Description

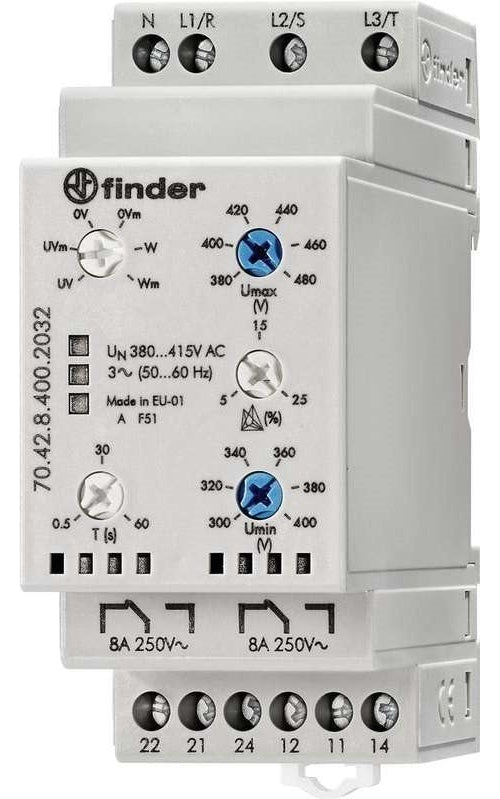

FINDER SERIE 70 Three-Phase Voltage Monitoring Relay is equipped with two cadmium-free SPDT contacts rated 8 A at 380–415 V AC (50/60 Hz). It mounts on a 35 mm DIN rail and features selective fault memory, under- and over-voltage window detection, phase sequence and asymmetry monitoring, and neutral-loss detection. The device offers a minimum switching load of 300 mW, 4 kV isolation between supply and contacts, and 1 000 V AC dielectric strength between open contacts. Front-panel trimmers and selectors allow precise adjustment of detection thresholds and functions, and multi-color LEDs indicate status.
Key Features
- 380–415 V AC supply voltage
- 2 SPDT contacts rated 8 A
- Selective fault memory
- 35 mm DIN rail mounting
- Cadmium-free contacts
- Front-panel adjustable trimmers
Specifications
Brand: FINDER
Model Series: SERIE 70
Supply Voltage Range V: 380-415
Frequency Hz: 50/60
Switched Contacts: 2
Contact Current A: 8
Width (mm): 35
Contact Material: Cadmium-free
Min Switching Load Mw: 300
Isolation Voltage Kv: 4
Dielectric Withstand Voltage V: 1000
Operating Temperature C: -20...+60
LED Indicators: true
Memory Feature: Selective fault memory
€219,40
