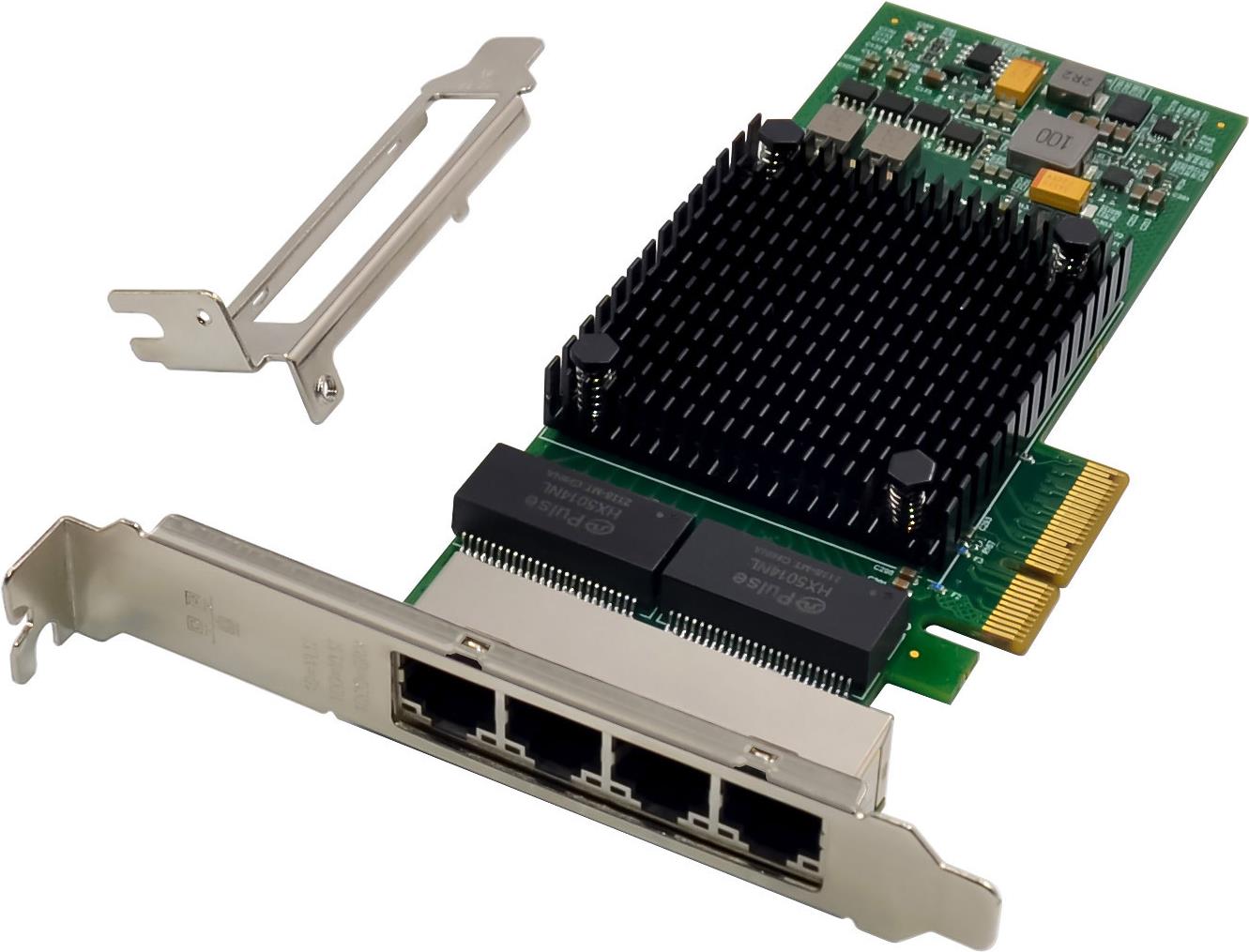

Four RJ45 Gigabit ports for high-performance and stable network connections. PCIe x4 interface compatible with x4, x8, and x16 slots. Supports Energy Efficient Ethernet (EEE), VLAN (802.1Q), and Jumbo Frames. Ideal for virtualized environments and iSCSI applications. Intel I350AM2 chipset for high performance and optimized power management. The InLine Quad Gigabit network card is specifically designed for use in servers and data centers, offering high-performance network connections with four RJ45 Gigabit ports. It is ideally suited for virtualized environments, iSCSI applications, and professional network infrastructures. Thanks to PCIe v2.1 (x4), the card offers high data bandwidth and is compatible with x4, x8, and x16 slots. State-of-the-art features such as Energy Efficient Ethernet (EEE), DMA coalescing, and flexible I/O virtualization (up to 32 virtual ports) ensure highly efficient network processing. Technical specifications: Bus type & PCIe: PCIe v2.1 (5 GT/s) x4 lane (compatible with x4, x8, x16 slots) Connector: 4 x RJ45 (copper) Chipset: Intel I350AM2 2 Supported Internet protocols: IPv4, IPv6 Dimensions: 155 mm x 69 mm (PCIe board) Duplex modes: Half-duplex: 10/100 Mbps Full-duplex: 10/100/1000 Mbps Maximum cable length: 10BASE-T: Category 3 or higher (up to 100 m) 100BASE-TX: Category 5 or higher (up to 100 m) m) 1000BASE-T: Category 5e or higher (up to 100 m) Features: Auto-Negotiation: Automatic adjustment of the connection speed Wake on LAN (WOL): Remote start of the computer possible Jumbo Frames: Transmission of larger data packets up to approx. 9K Extended technical details IEEE standards: IEEE 802.3: Basic standard for Ethernet IEEE 802.3u: Fast Ethernet 100 Mb/s IEEE 802.3ab: Gigabit Ethernet 1000 Mb/s over copper IEEE 802.3x: Flow Control Control of data flow IEEE 802.1Q: VLAN division into logical networks IEEE 1588/802.1AS: For precise time synchronization Further functions: Checksum Offloading: Relieving the processor of checksum calculations Interrupt Levels: INTA, INTB, INTC, INTD, MSI, MSI-X Interrupt Throttling Control: Interrupt rate limitation; Support for Receive-side Scaling (RSS); Virtual machines: Support for device queues and Next Generation VMDq (up to 8 VMs); Management statistics & RMON support; Operating system support: Windows: 11, 10, 8, 7; Windows Server: 2008 R2, 2016, 2019, 2021; Linux: from kernel version 2.6.30; Environmental conditions: Operating temperature: 0 °C to 55 °C; Storage temperature: -40 °C to 70 °C; Maximum humidity: 90%; Package contents: 1x InLine Quad Gigabit network card, 4x RJ45 1 Gb/s; 1x Low profile slot bracket; 1x Driver CD; 1x User manual (German/English) - I/O cards / Front panel / Slot brackets; I/O cards - InLine Quad Gigabit network card, 4x RJ45 1 Gb/s PCIe x4.
€160,23
